ain uses of edge sealing box:

The edge sealing box is mainly used for semi-automatic and automatic edge sealing machine to warm up and preheat in advance, to pave the way for better edge sealing effect!

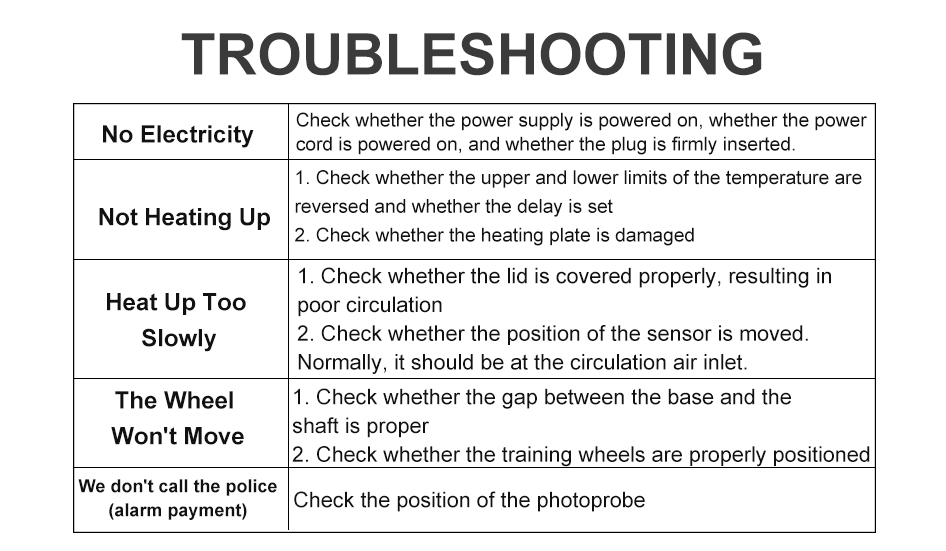

Sealing edge strip incubator does not heat the solution

Check whether the fan rotates

Fan rotation

If the heating plate is damaged, arrange to reissue the heating plate to the customer

Fan failure

Check the wiring to see if it is damaged

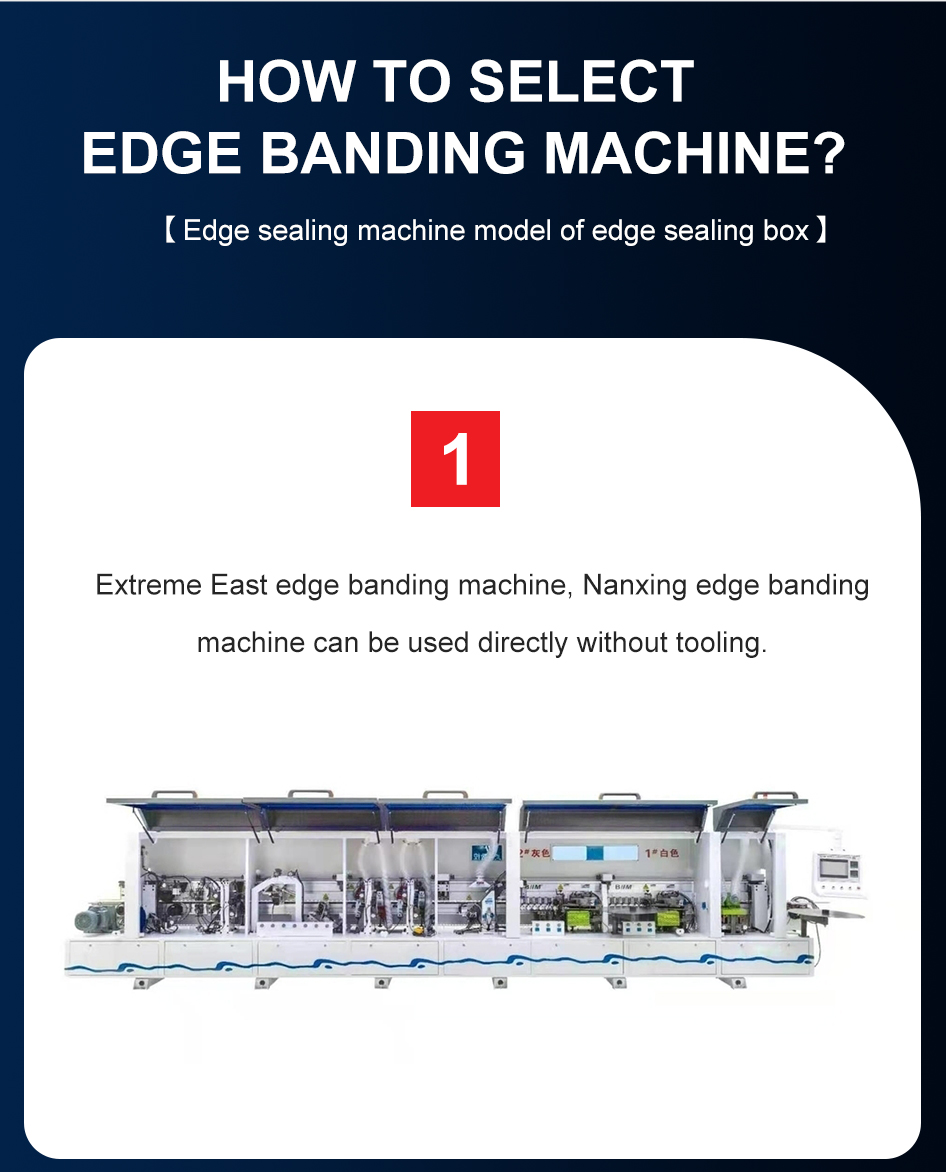

How to select edge banding machine?

【 Edge sealing machine model of edge sealing box 】

Extreme East edge banding machine, Nanxing edge banding machine can be used directly without tooling.

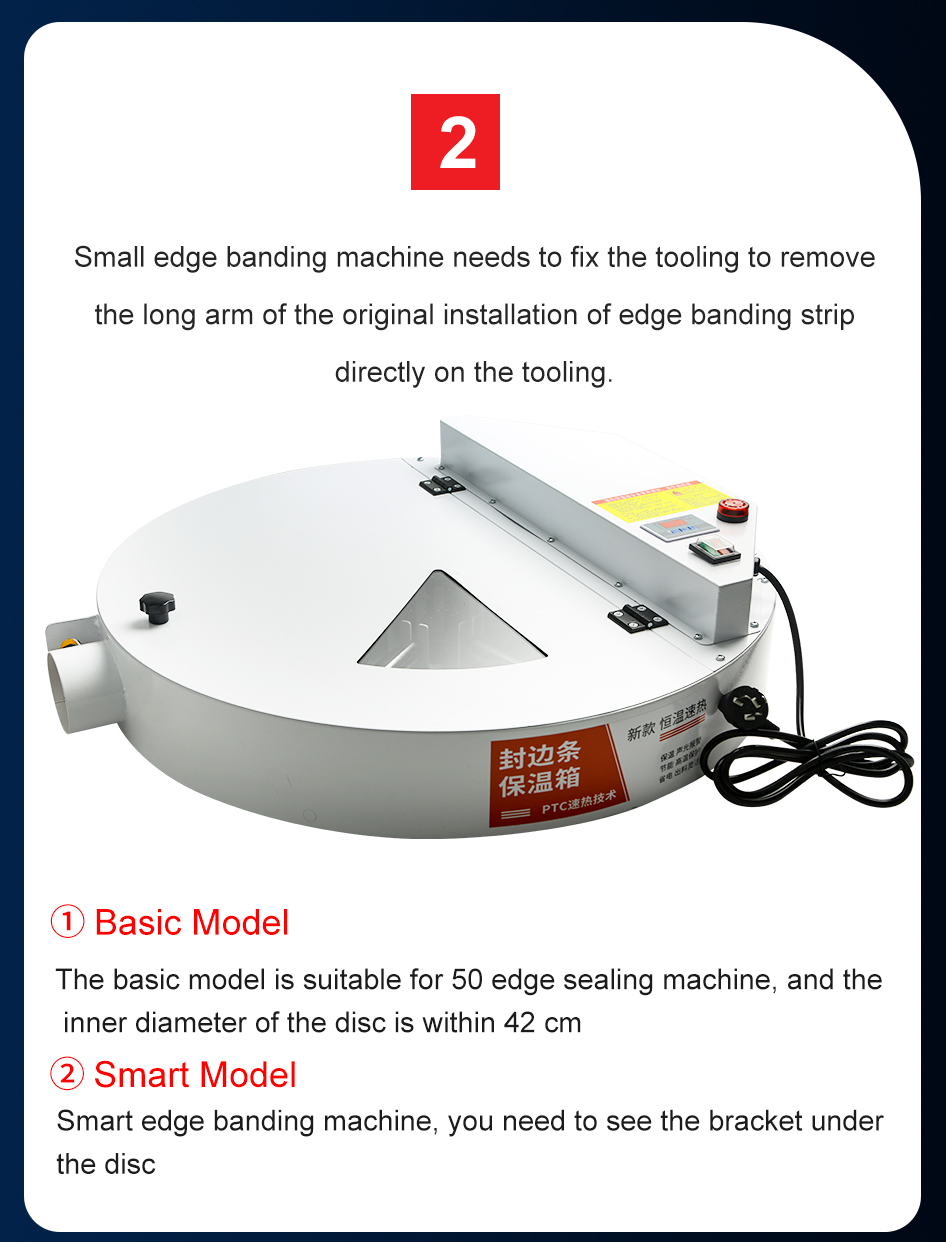

① Basic model

The basic model is suitable for 50 edge sealing machine, and the
inner diameter of the disc is within 42 cm

② Smart model

Smart edge banding machine, you need to see the bracket under
the disc

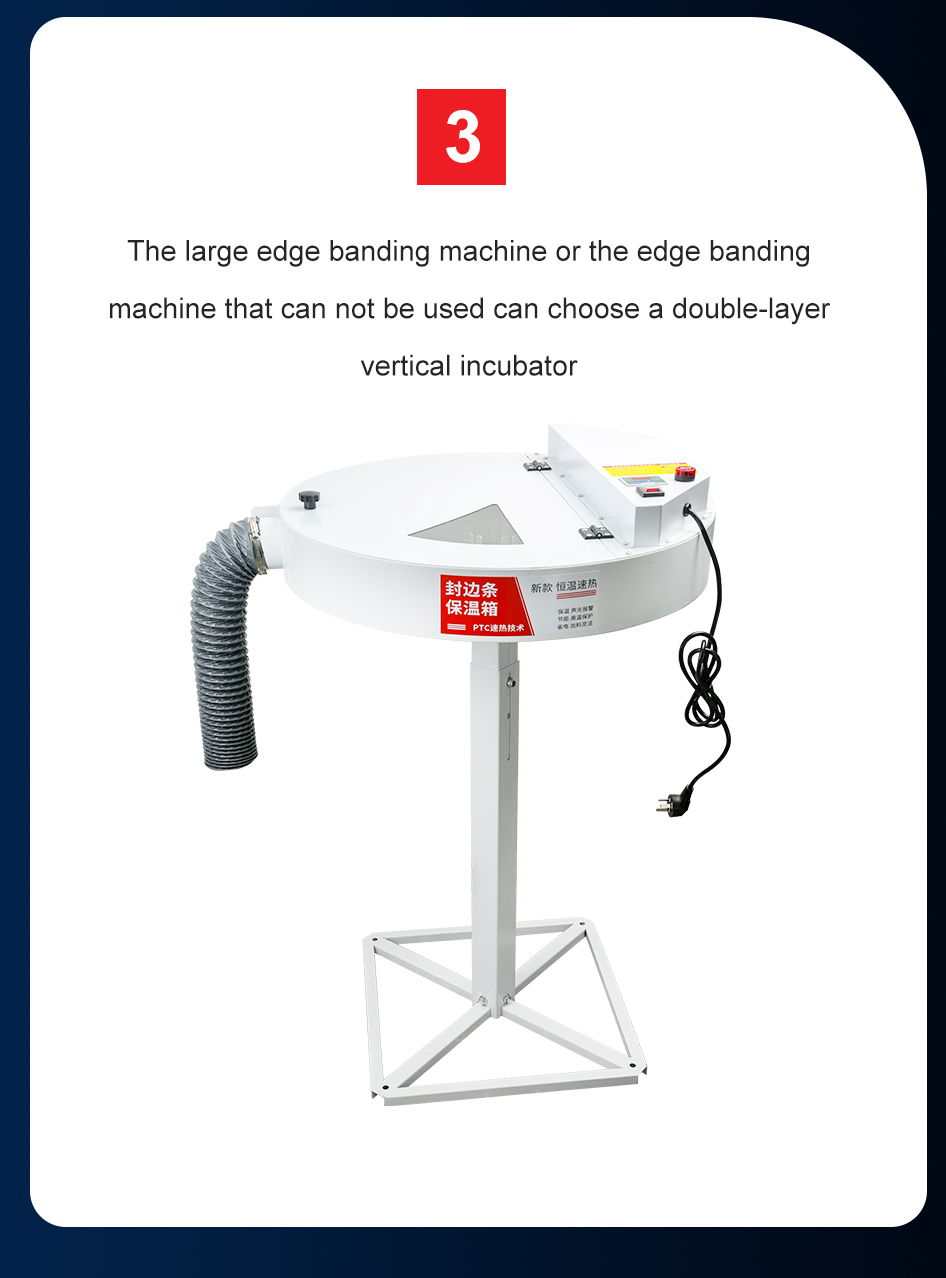

The large edge banding machine or the edge banding machine that can not be used can choose a double-layer vertical incubator

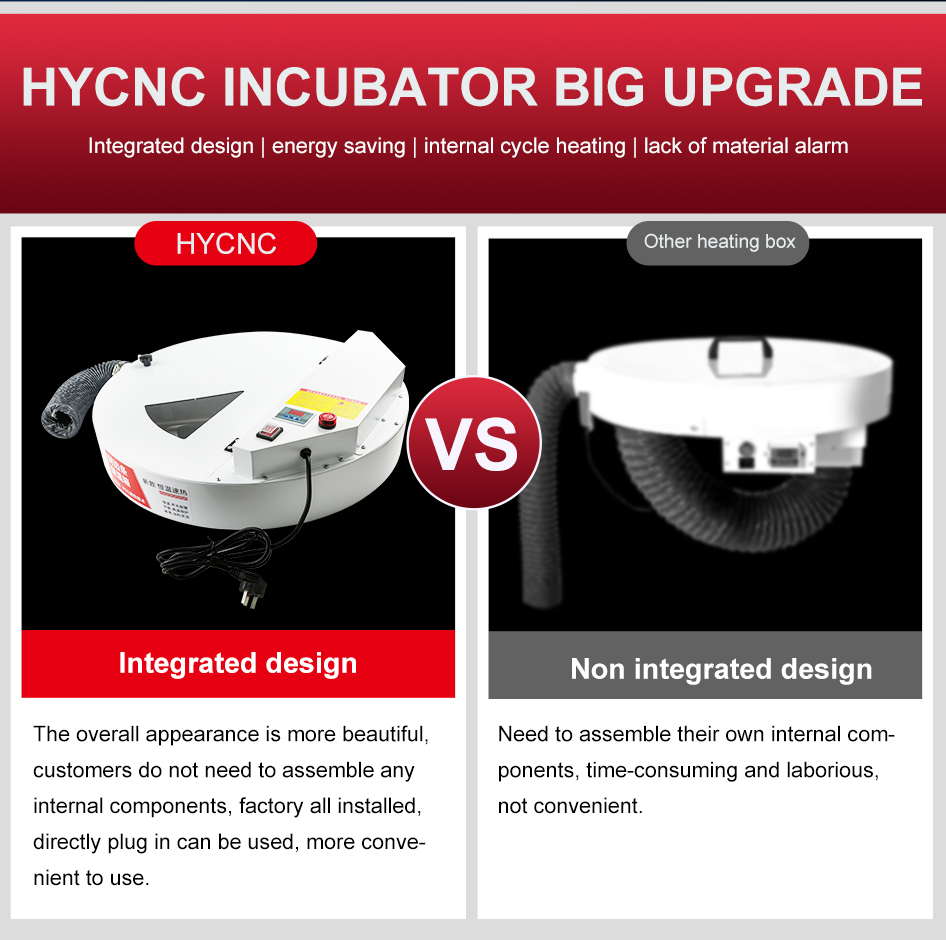

Integrated design

The overall appearance is more beautiful, customers do not need to assemble any internal components, factory all installed, directly plug in can be used, more convenient to use.

Non integrated design

Need to assemble their own internal components, time-consuming and laborious, not convenient.

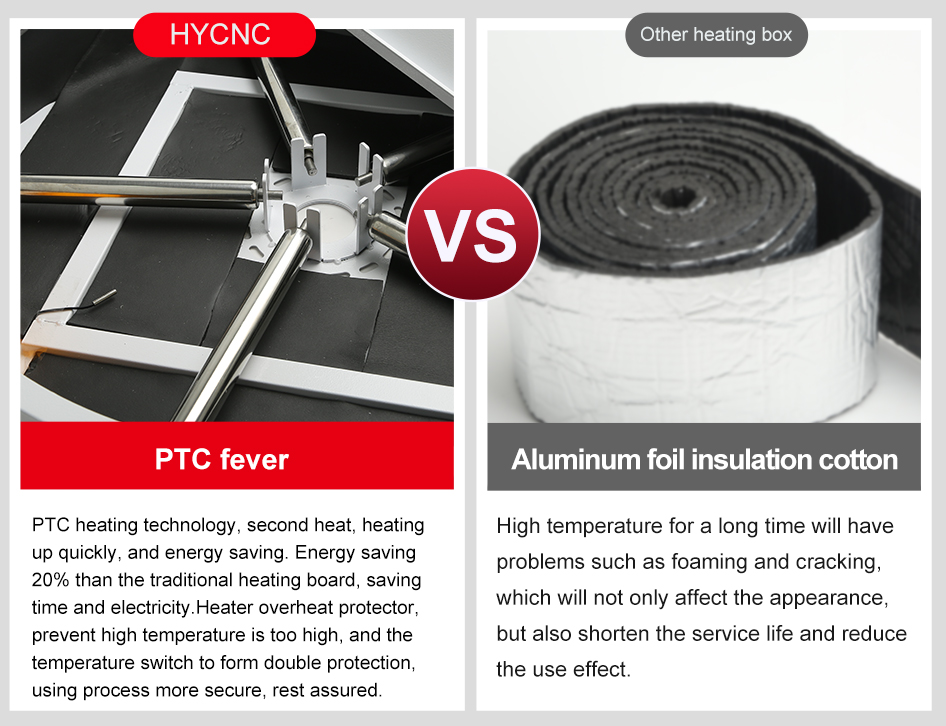

PTC fever

PTC heating technology, second heat, heating up quickly, and energy saving. Energy saving 20% than the traditional heating board, saving time and electricity.Heater overheat protector, prevent high temperature is too high, and the temperature switch to form double protection, using process more secure, rest assured.

Aluminum foil insulation cotton

High temperature for a long time will have problems such as foaming and cracking, which will not only affect the appearance, but also shorten the service life and reduce the use effect.

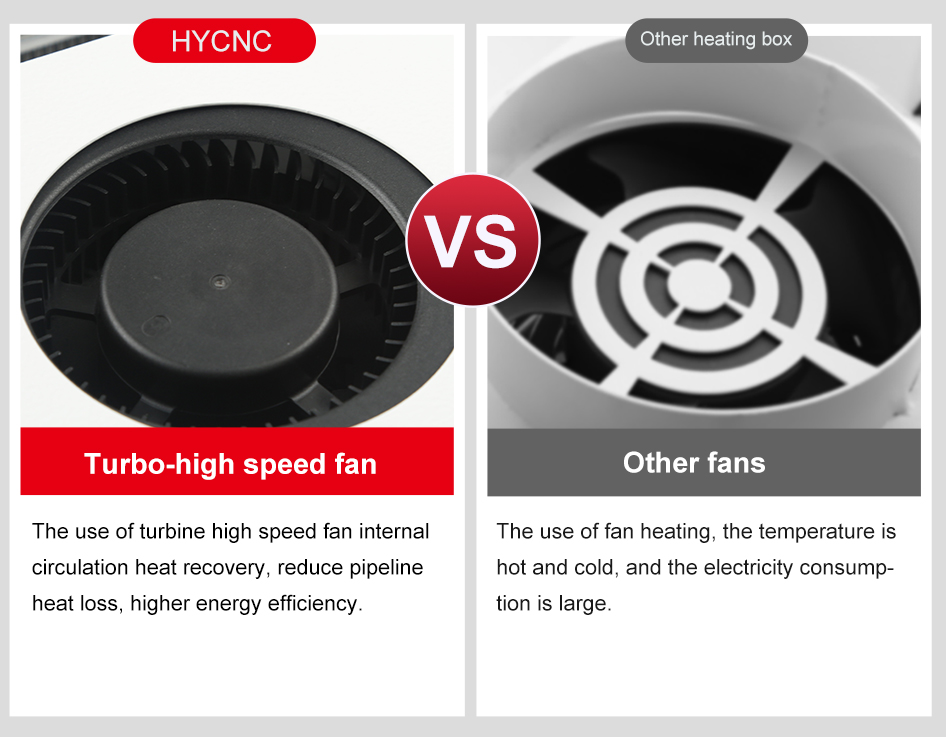

Turbo-high speed fan

The use of turbine high speed fan internal circulation heat recovery, reduce pipeline heat loss, higher energy efficiency.

Other fans

The use of fan heating, the temperature is hot and cold, and the electricity consumption is large.

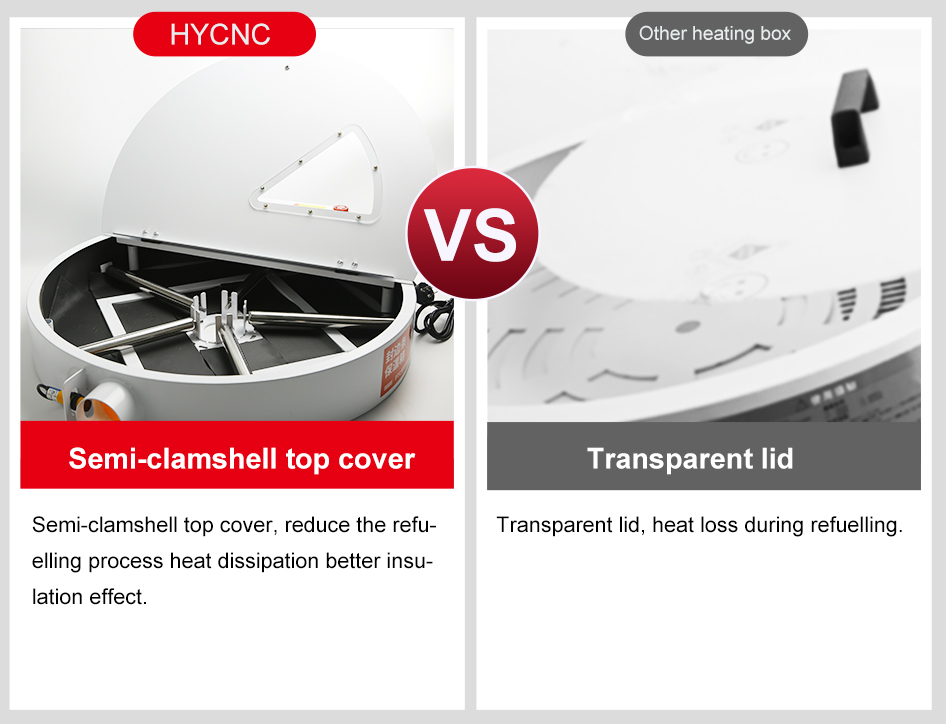

Semi-clamshell top cover

Semi-clamshell top cover, reduce the refuelling process heat dissipation better insulation effect.

Transparent lid

Transparent lid, heat loss during refuelling.

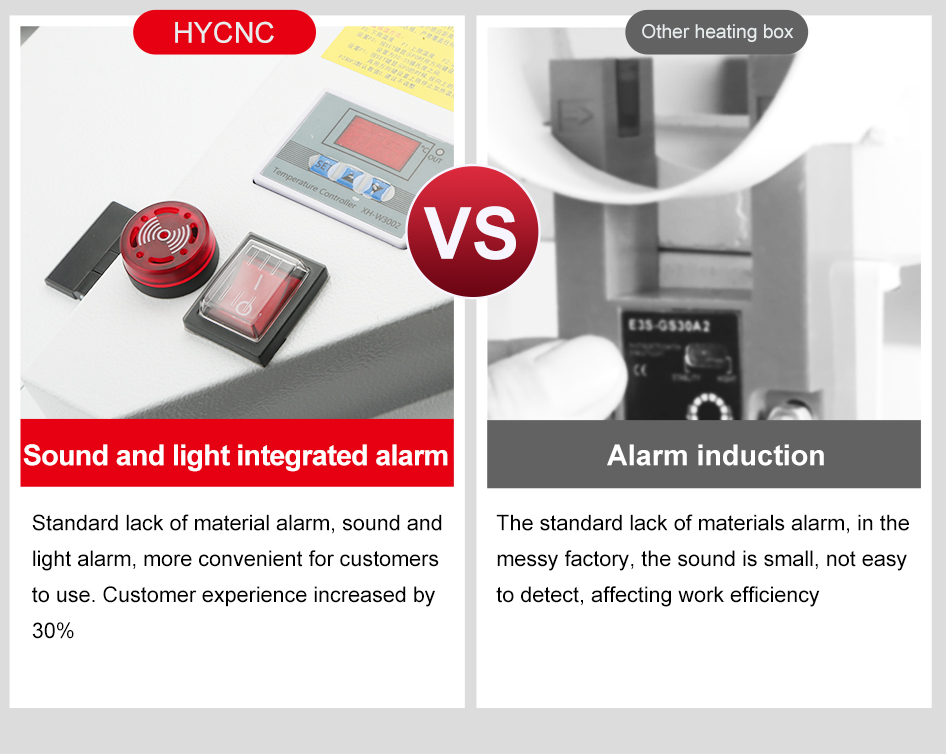

Sound and light integrated alarm

Standard lack of material alarm, sound and light alarm, more convenient for customers to use. Customer experience increased by 30%

Alarm induction

The standard lack of materials alarm, in the messy factory, the sound is small, not easy to detect, affecting work efficiency

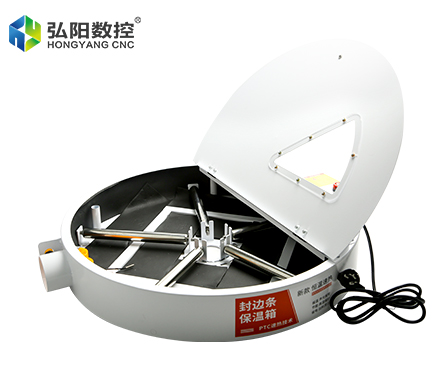

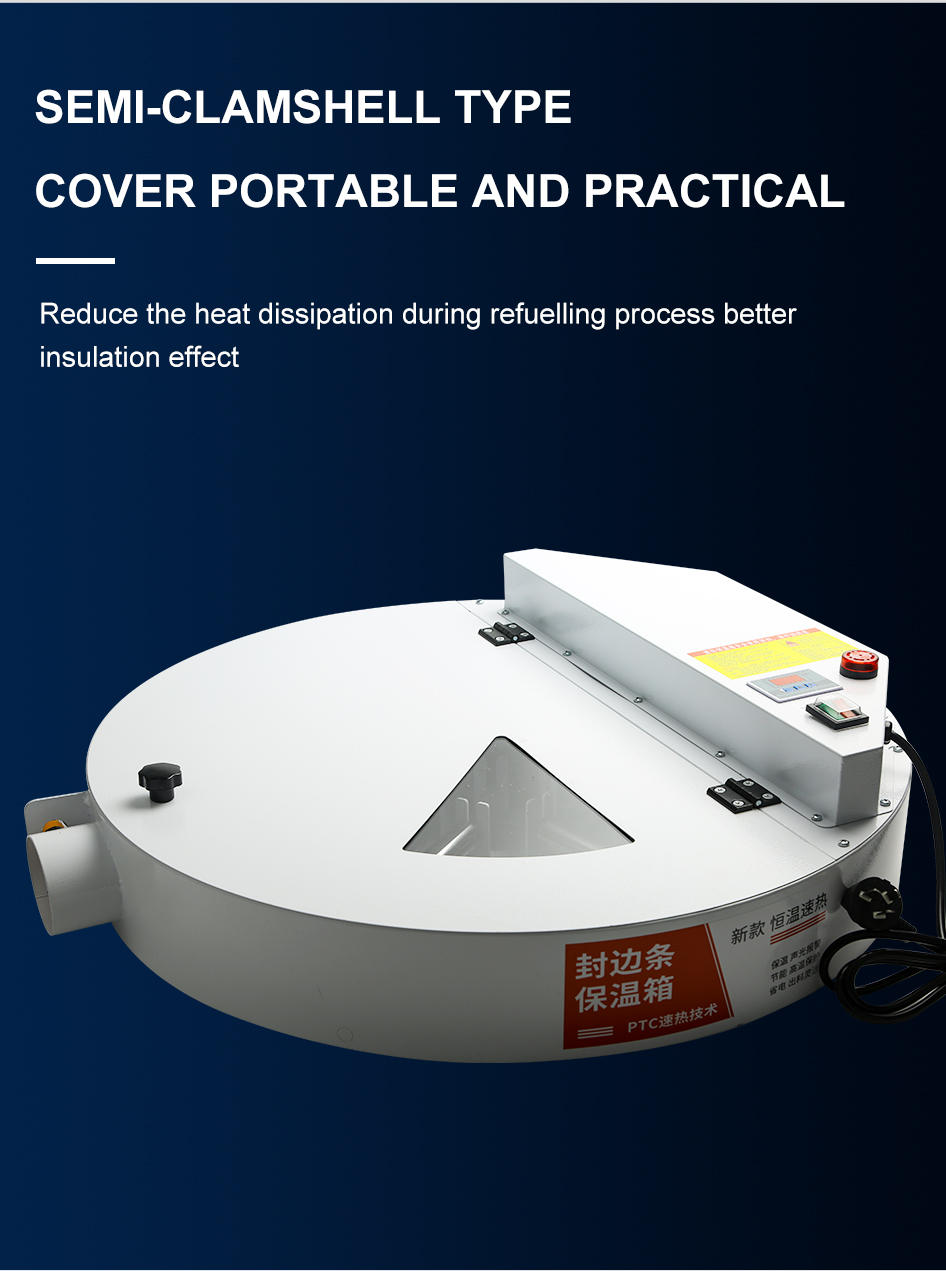

Semi-clamshell type
Cover portable and practical

Reduce the heat dissipation during refuelling process better
insulation effect

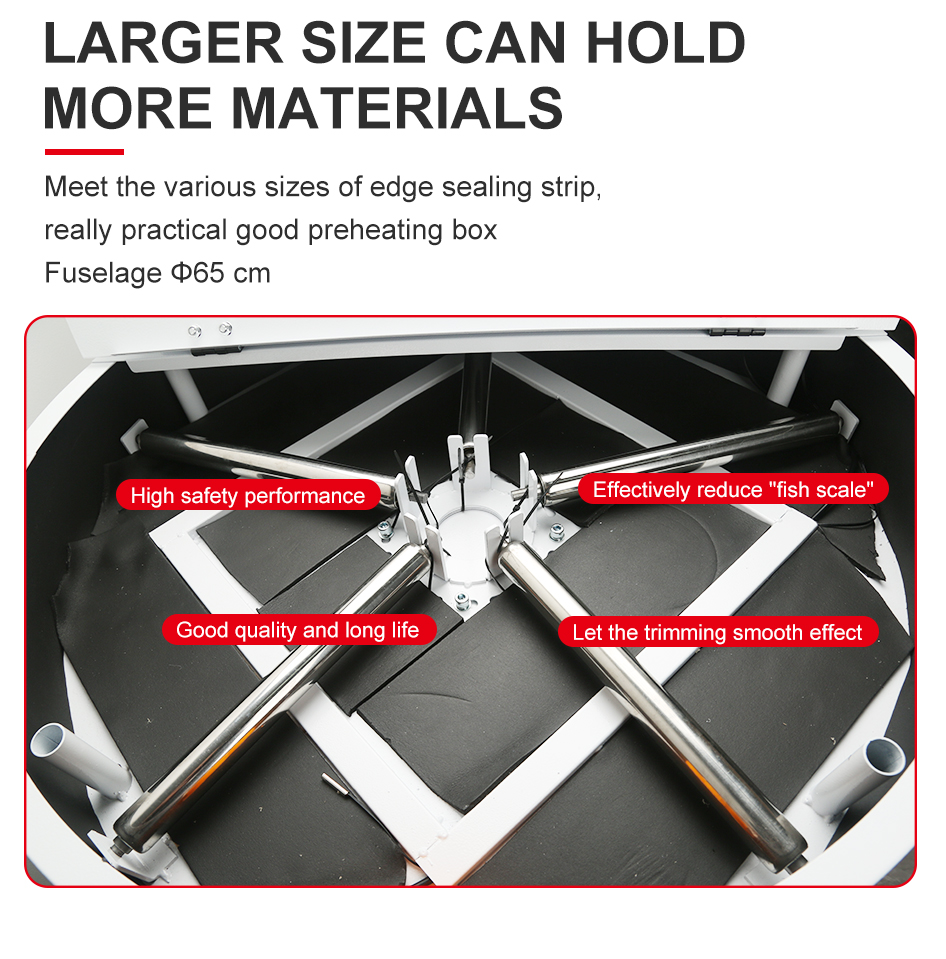

Larger size can hold more materials

Meet the various sizes of edge sealing strip,really practical good preheating box Fuselage Φ65 cm

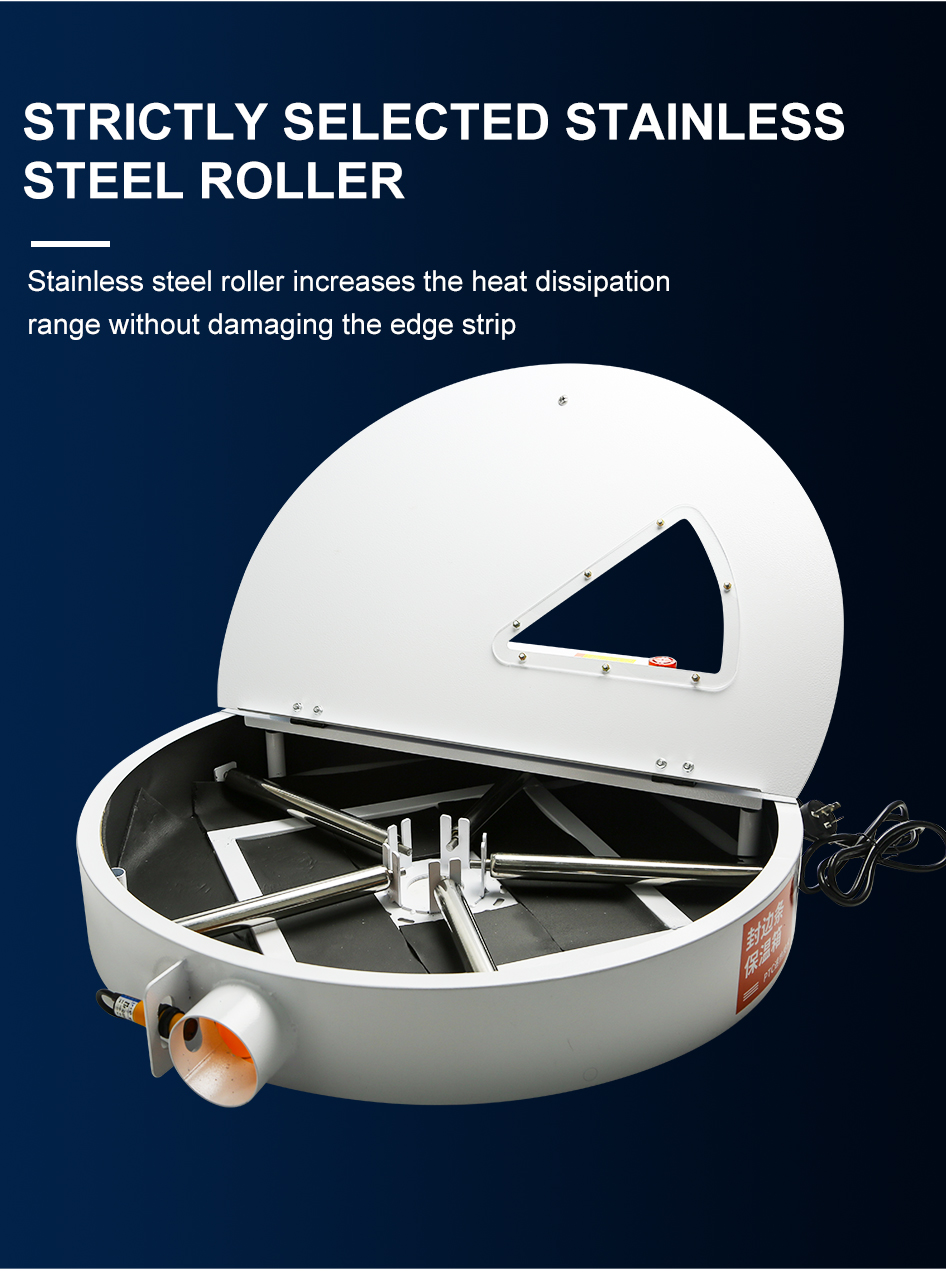

Stainless steel roller increases the heat dissipation
range without damaging the edge strip

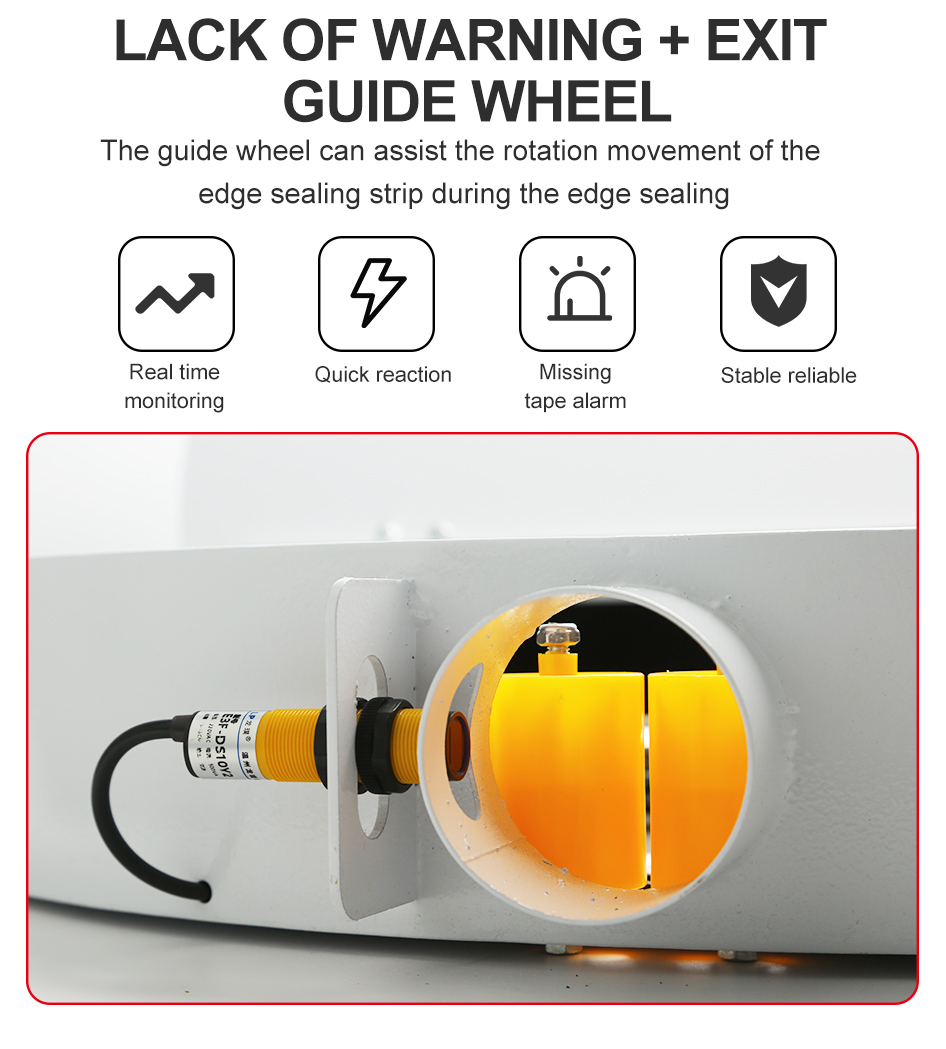

Lack of warning + exit guide wheel

The guide wheel can assist the rotation movement of the edge sealing strip during the edge sealing

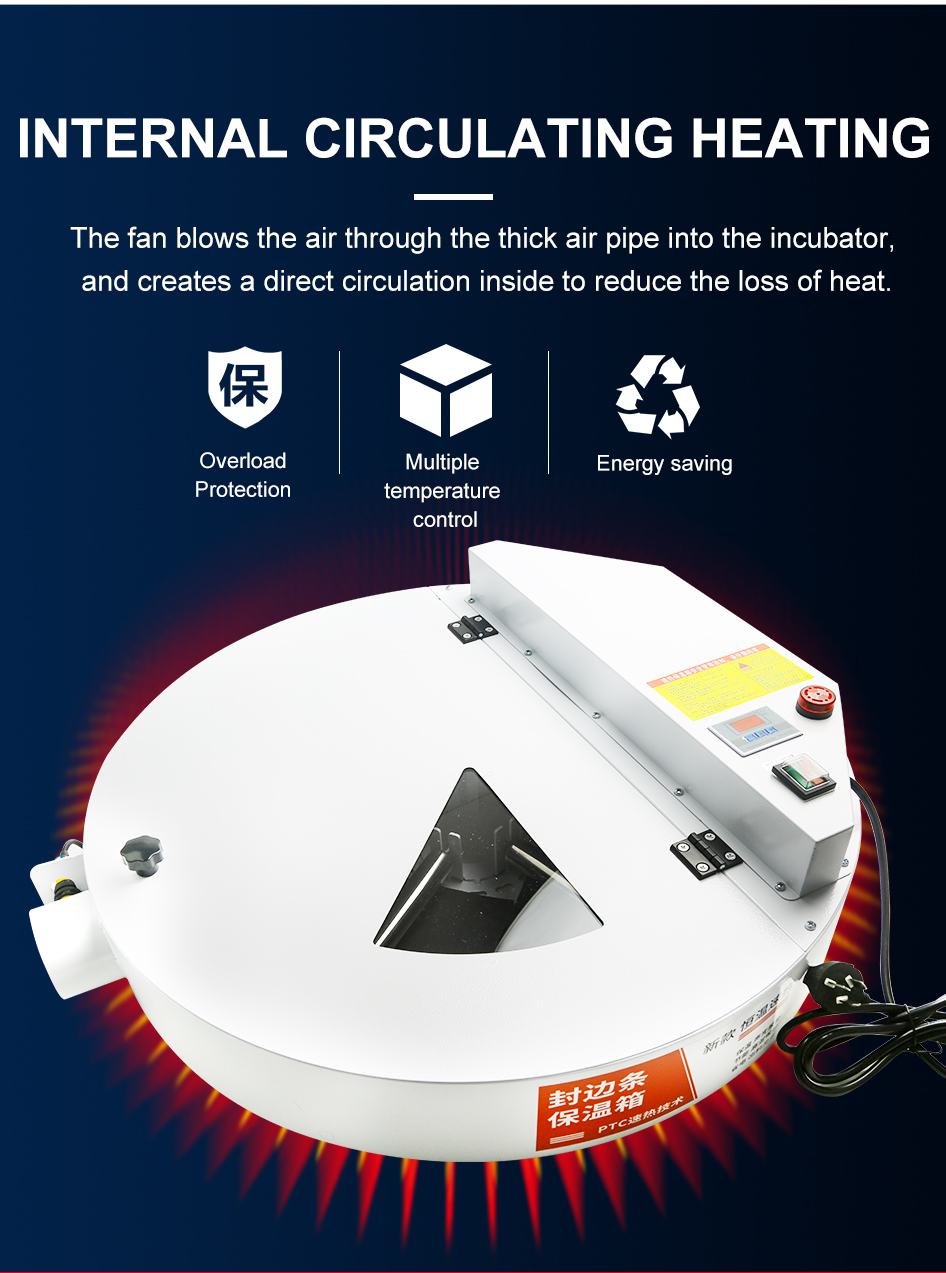

Internal circulating heating

The fan blows the air through the thick air pipe into the incubator,and creates a direct circulation inside to reduce the loss of heat.

Integrated design, beautiful and practical

Customers do not need to assemble any internal components, factory all installed, directly plug in can be used, using PTC heating technology, second heat, fast heating, and energy saving. Energy saving 50% than the traditional heating plate, saving time and electricity. The heater has an overheat protector to prevent the high temperature from being too high, and the temperature switch forms a double layer protection, making the use process safer and more assured.

Turbine high speed internal circulation fan

Reduce the heat loss of the pipeline, higher energy efficiency, the design of the hot air on the top and out will not have foreign bodies falling into the heating plate to avoid the risk of smoke and fire caused by foreign bodies, which is safer. Standard lack of material alarm, sound and light alarm, more convenient for customers to use. Customer experience increased by 30%!

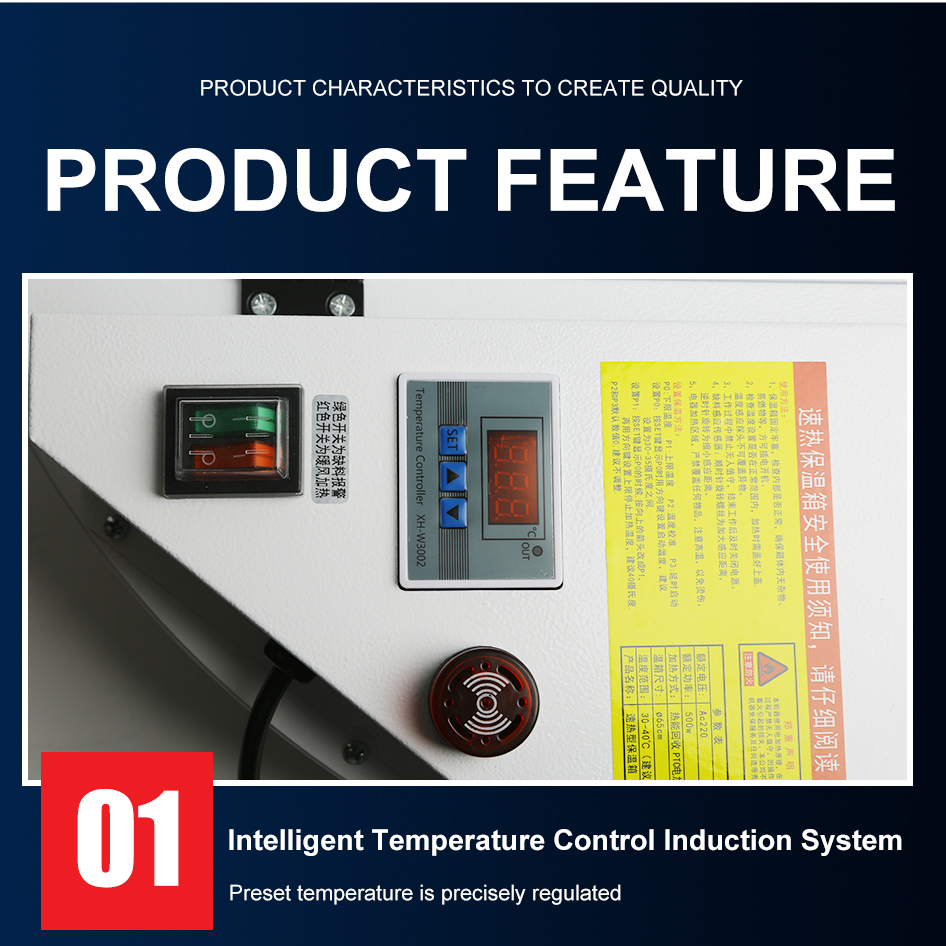

Intelligent temperature control induction system

Preset temperature is precisely regulated

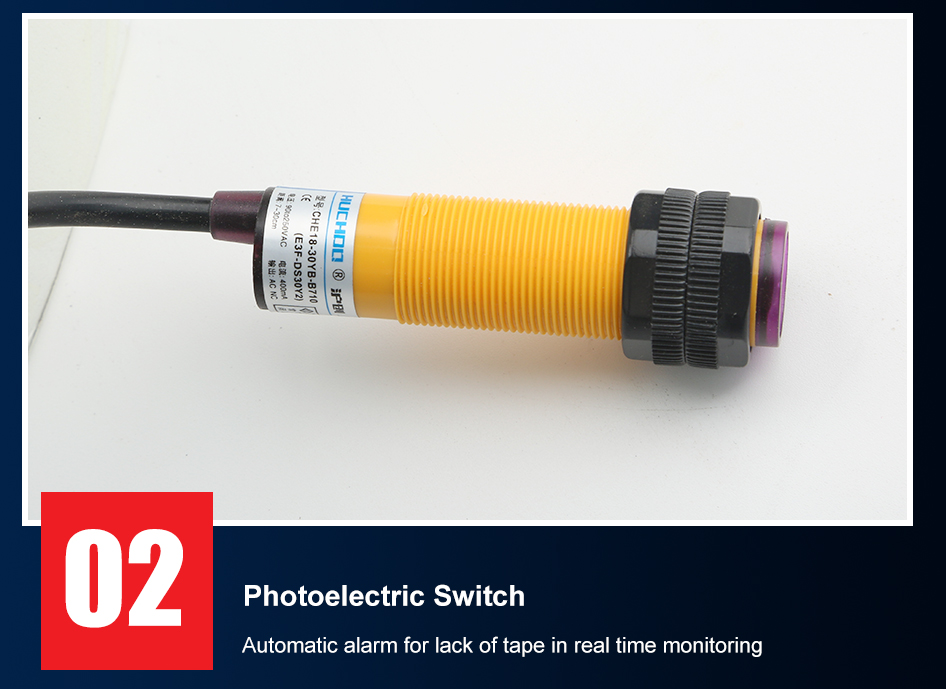

Photoelectric switch

Automatic alarm for lack of tape in real time monitoring

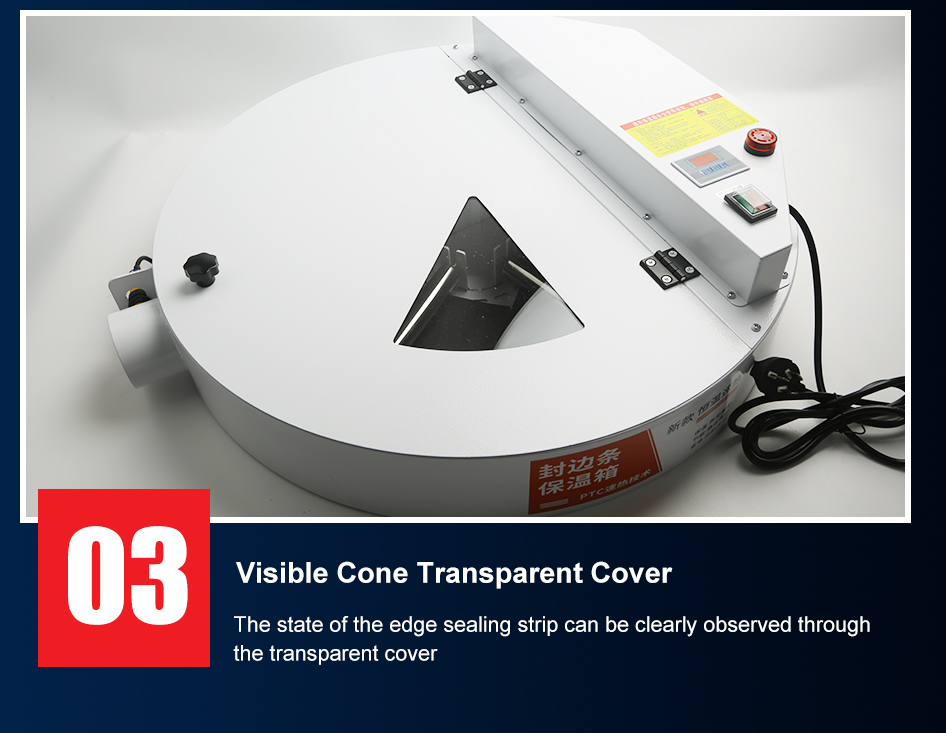

Visible cone transparent cover

The state of the edge sealing strip can be clearly observed through
the transparent cover

Instructions for use

1. The applicable voltage of this product is 220V, please do not connect the wrong 380V.

2. Connect the circulating air duct and cover the cover when using, otherwise the thermostat can not perceive the temperature, which will cause the heating plate to continue to heat up and burn the components.

3. Please adjust the alarm photoelectric to the correct position to ensure normal operation.

4. Do not fall into the debris at the air outlet of the heat dissipation port to avoid jamming the fan and burning it out.

5. The machine is equipped with thermal insulation cotton, stick to the bottom and surrounding, be careful not to block the inlet and outlet.

Temperature setting:

PO: lower limit temperature      P2: Temperature correction

P1: Upper limit temperature      P3: delayed startup

Lower limit temperature PO: 25° C to 30 ° C is recommended

Press: Set (show PO) A set (show temperature) up and down arrow to adjust the appropriate temperature
