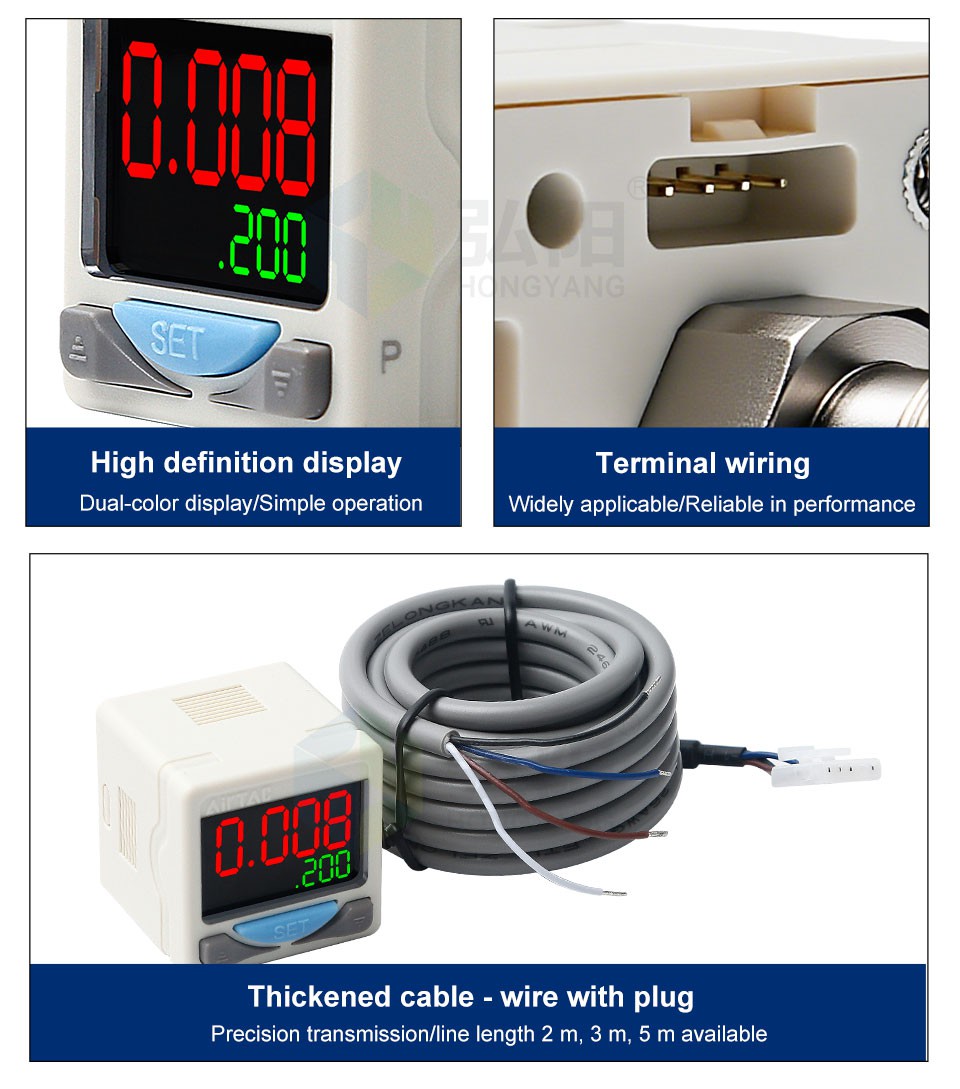

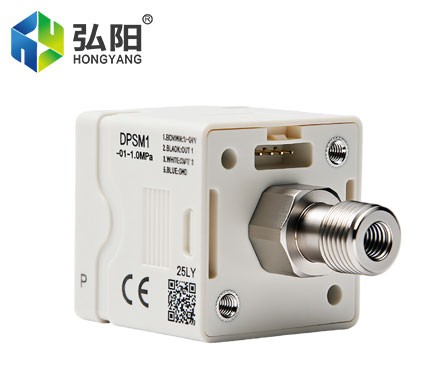

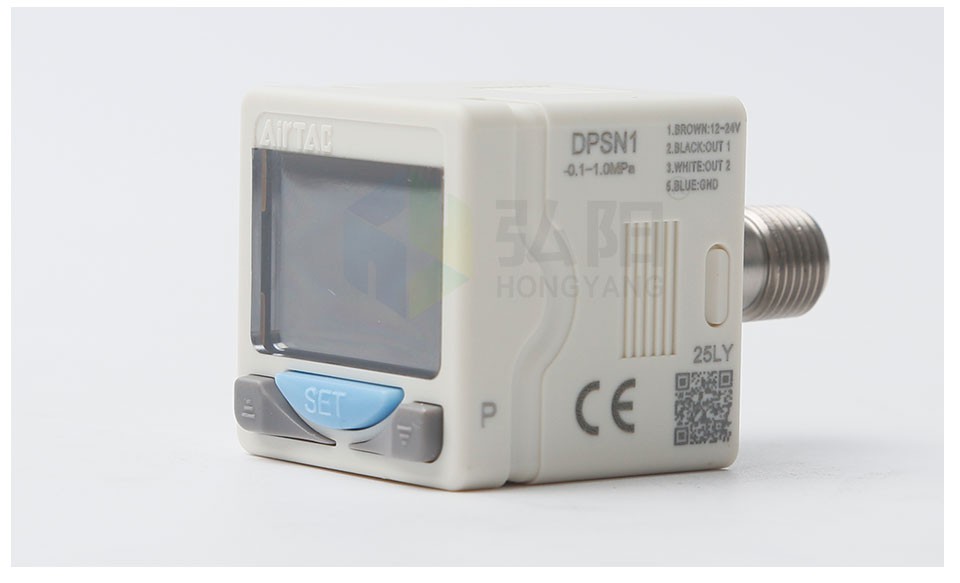

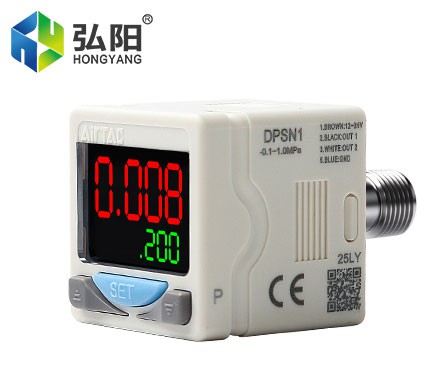

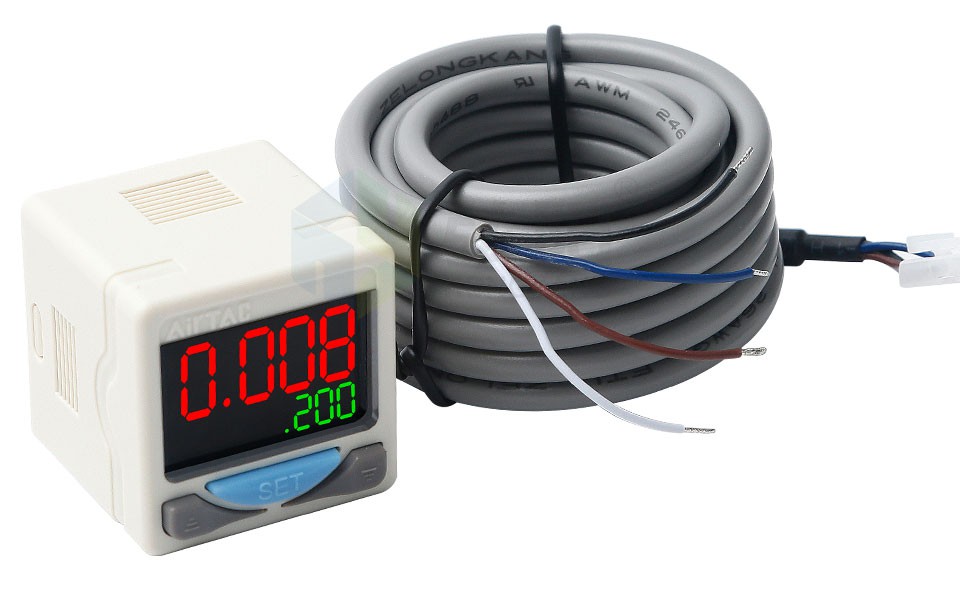

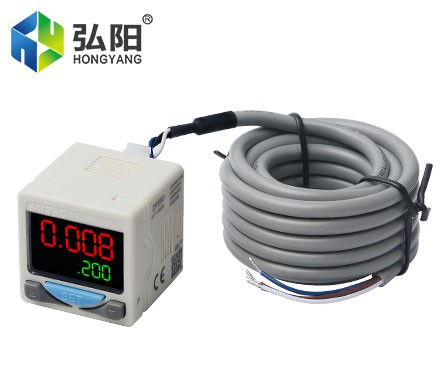

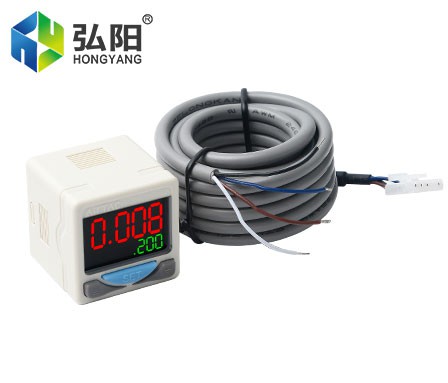

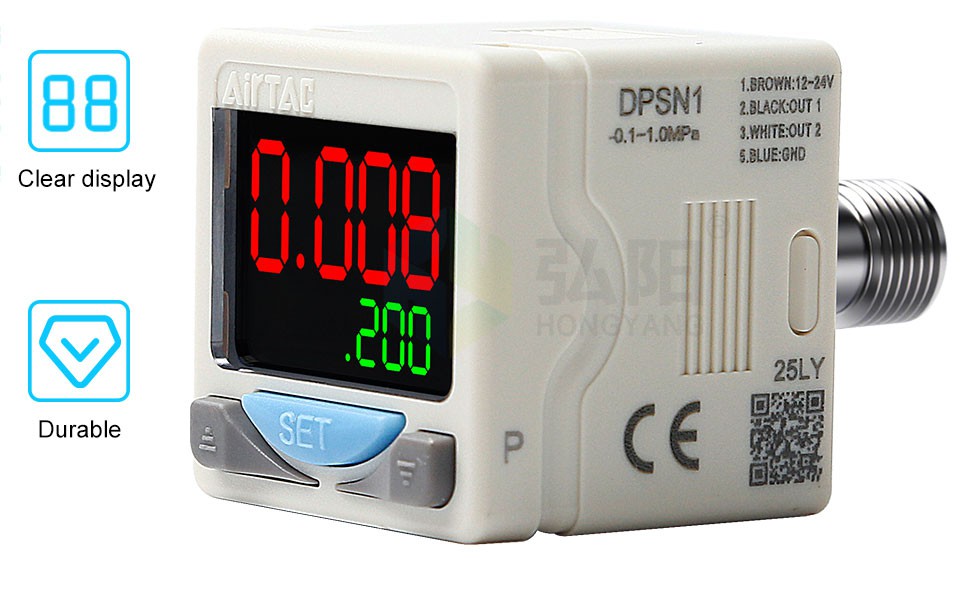

The digital display pressure switch is an intelligent instrument integrating pressure measurement, d
1. Prompt and sensitive response, as well as rapid feedback on system pressure changes, helps to enhance equipment control efficiency 2. It has good durability and a design without mechanical contacts, reducing wear and extending the product's service life.
1. Do not drop, strike or apply excessive impact to avoid internal damage and incorrect operation.

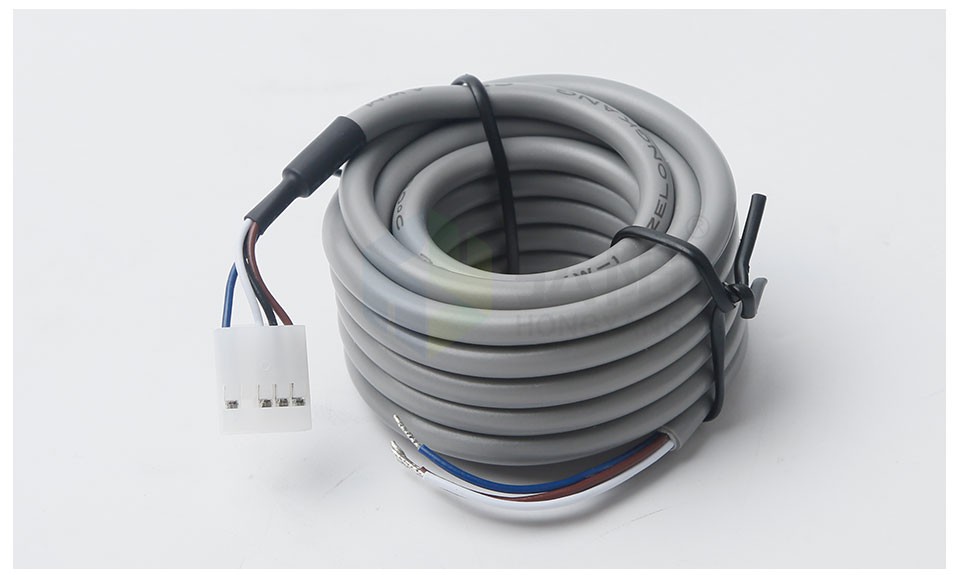

2. The tensile strength of the connecting wire is 60N, which is greater than this force will lead to failure.
3. The torsional strength of the air pressure source pipe joint is 7N.m. Greater than this force will lead to air tightness and system failure.
4. This product is not suitable for corrosive, flammable gases and liquids.
5. Please use the air pressure within the rated range of the product. Exceeding it may cause damage to the product.

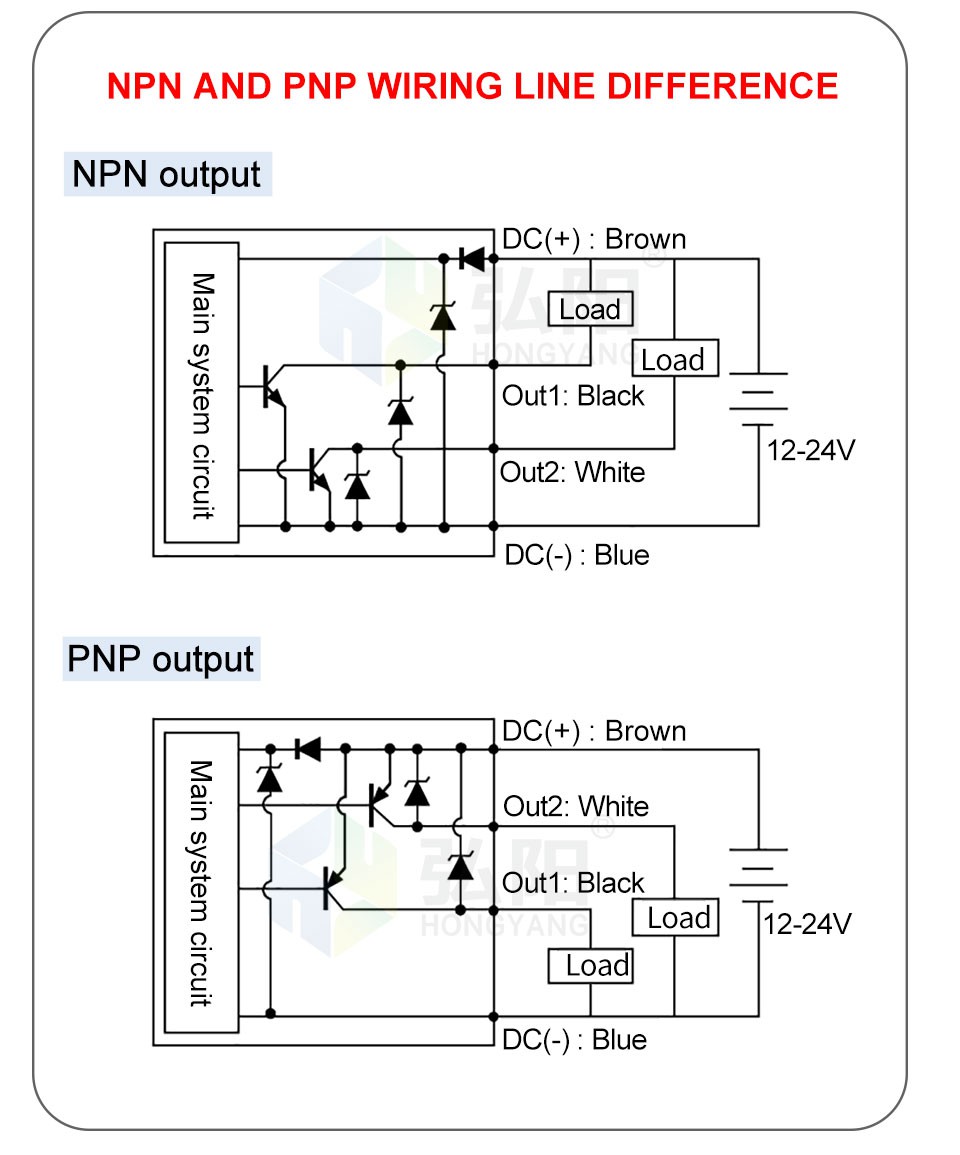

6. When wiring the circuit, the power supply of the product should be turned off, and the wrong wiring and short circuit will damage the product.7. Do not use in an environment with water vapor or oil mist.
8. When wiring, do not bundle it with power cords or high-voltage wires to avoid malfunctions.
9. If the output current exceeds 100mA, the over-current protection will be started, and the power supply will be restarted.

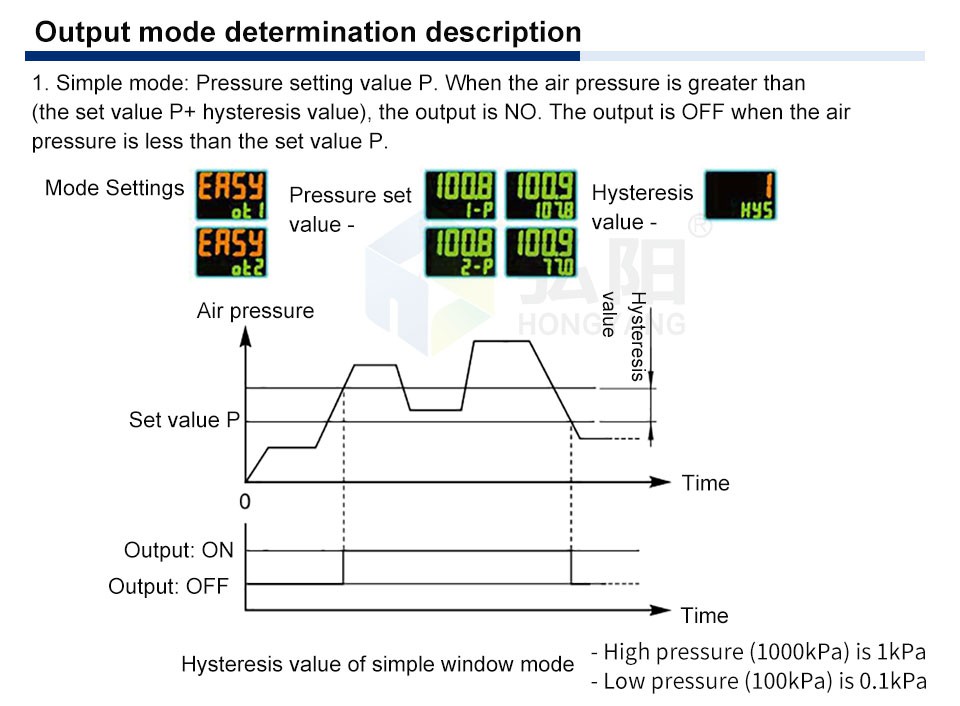

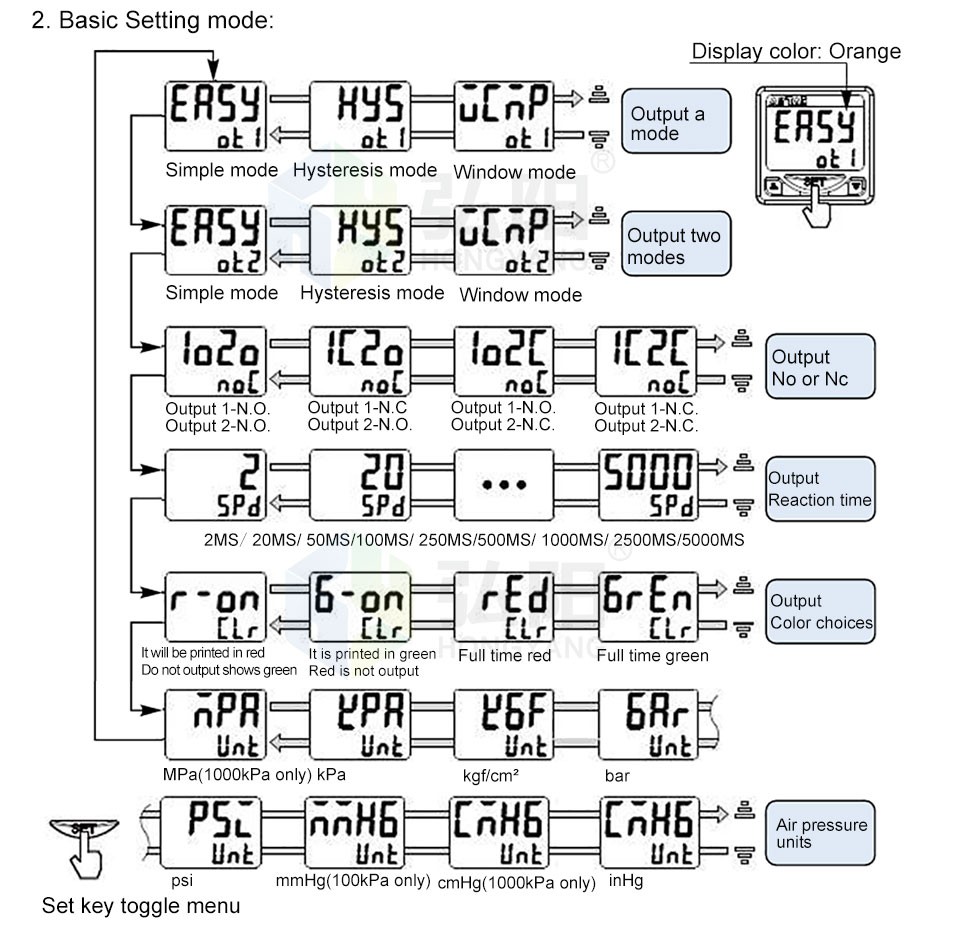

10. Adjusting the output-response time can prevent the detection of sudden abnormal pressure changes.
11. PNP type, no cloning function.
