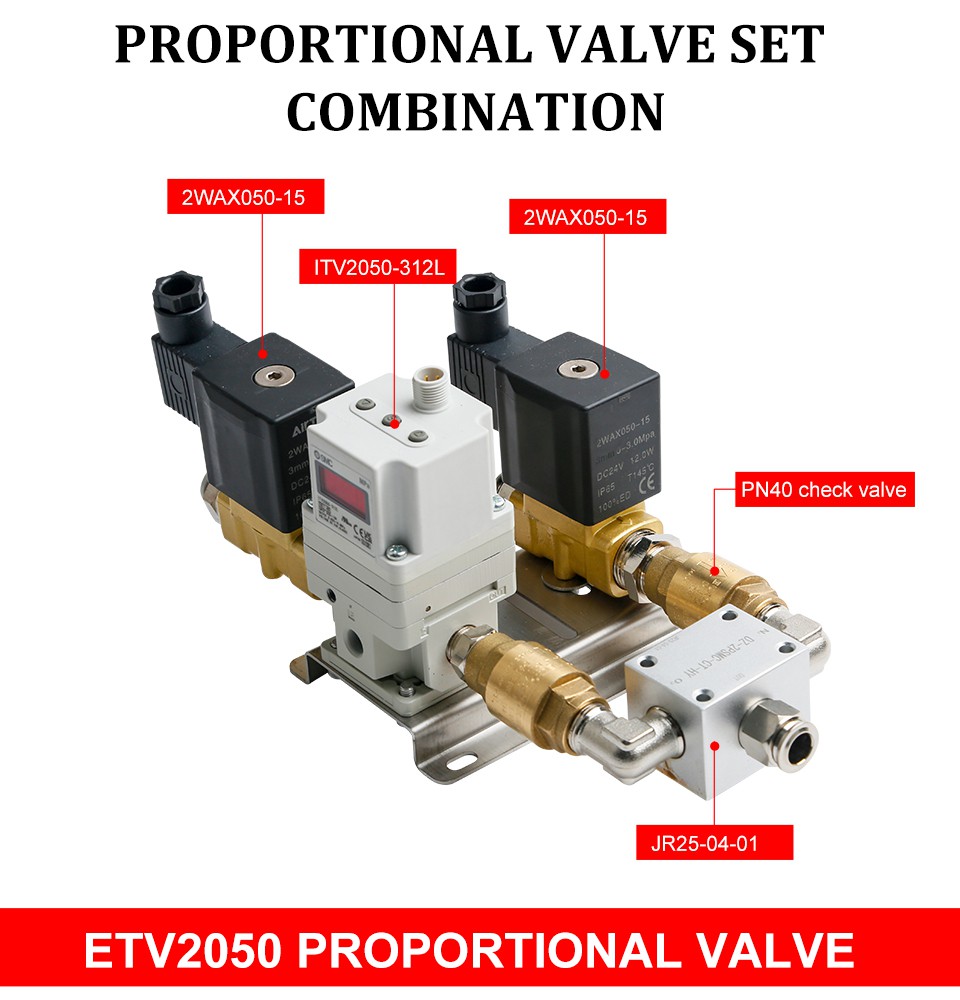

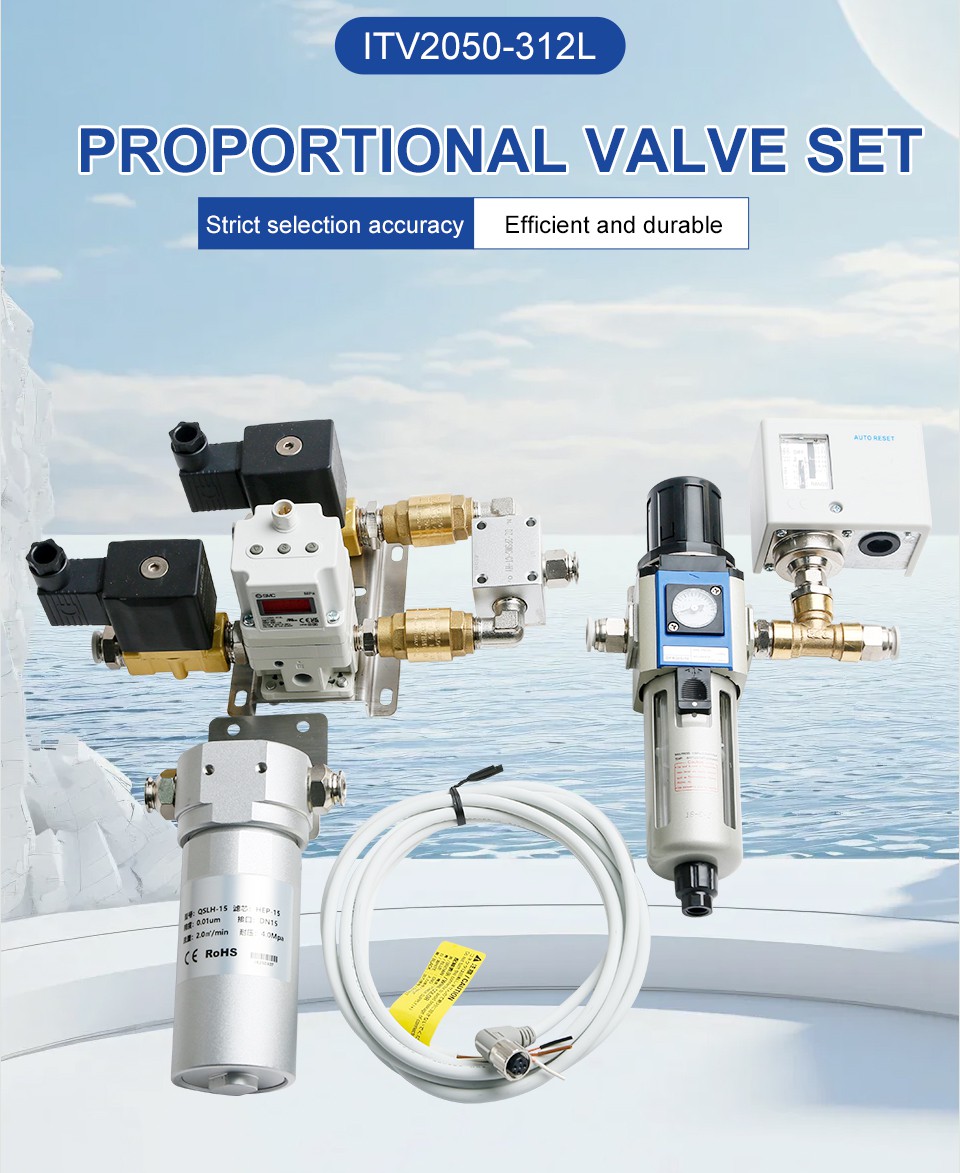

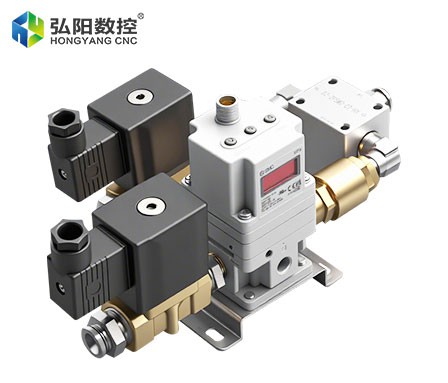

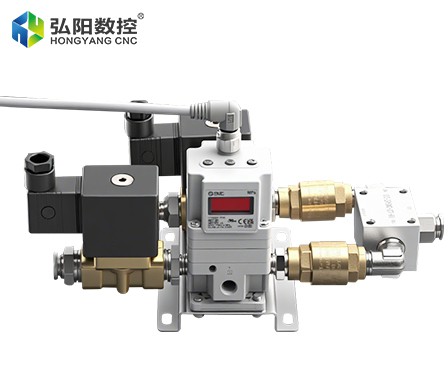

24V Pneumatic Equipment ITV2050-312L Automatic Pressure Reducing Valve Electrical Proportional Laser Cutting Filter

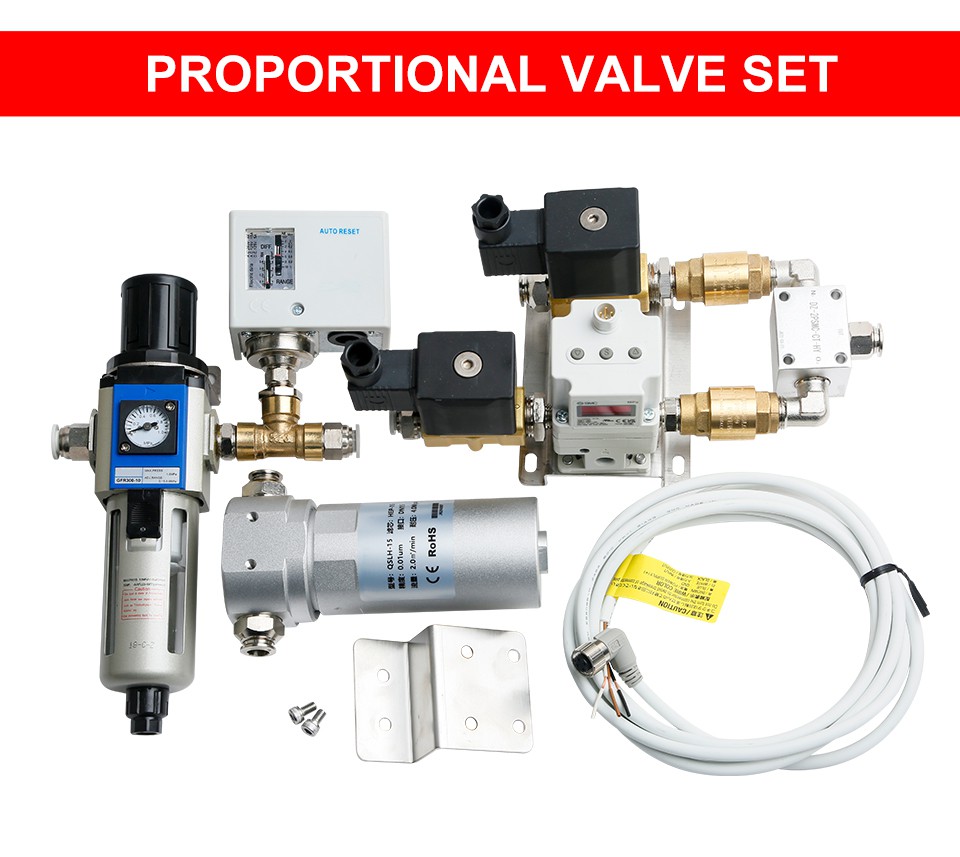

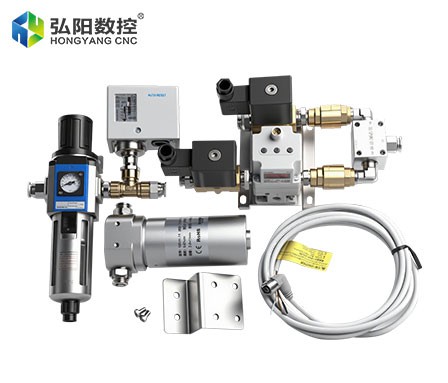

The special pressure regulating valve group for the laser cutting industry features reliable sealing

Mobile：+8615905415325

WeChat

产品描述

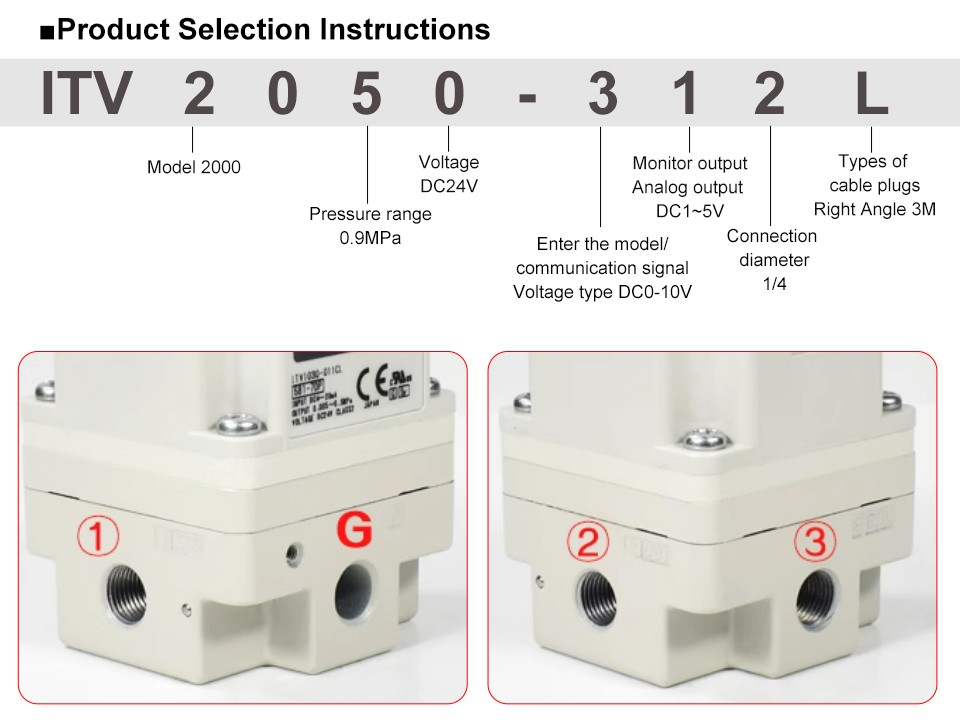

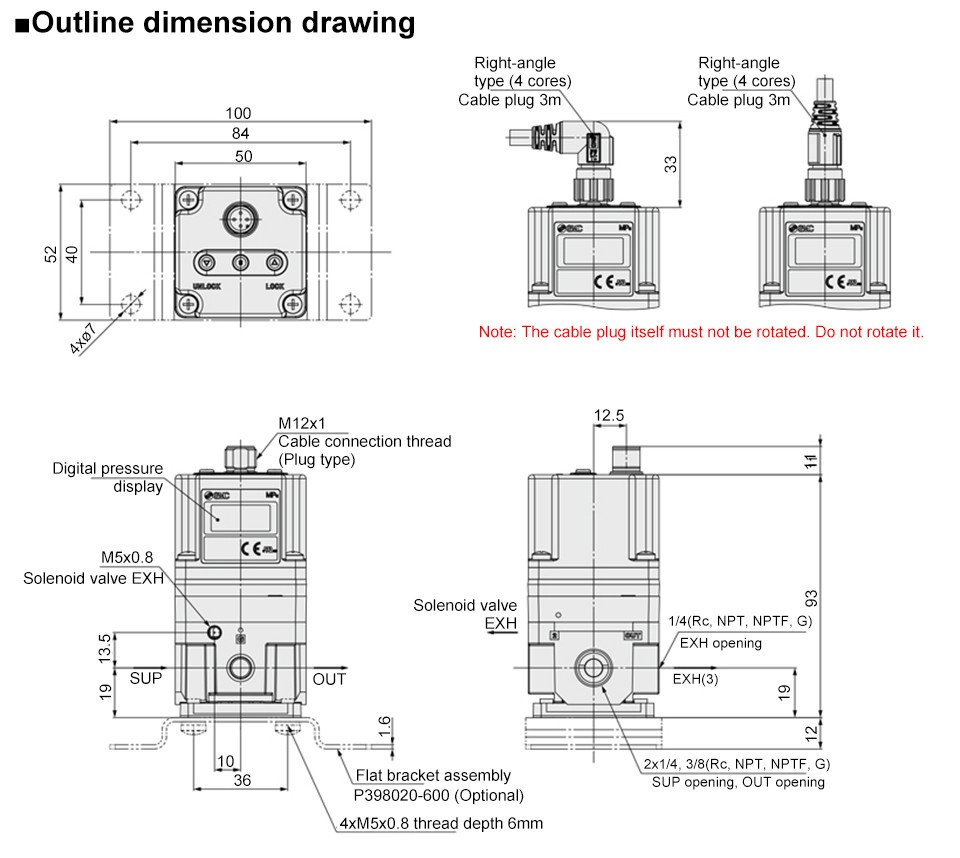

G Exhaust port: The interior is a precision component. It should be avoided to be used in harsh environments. Otherwise, impurities and water vapor may enter, which will affect the product's usag

e1.SUP air inlet: The input drying accuracy needs to be guaranteed to be below 5μ m

2.OUT outlet: Output the adjusted controlled pressure

3.EXH overflow port: When overflow is needed, air is discharged. During overflow use, if the noise is too loud, a muffler can be considered for installation

■General question and answer:

& : What is the direct-acting normally closed type?
When powered on, the electromagnetic coil generates electromagnetic force to lift the closing member from the valve seat, and the valve opens. When power is cut off, the electromagnetic force disappears, and the spring presses the closing member against the valve seat, closing the valve.
B: Features: It can operate normally under vacuum, negative pressure and zero pressure conditions, but the diameter of half of the passage does not exceed 25mm.

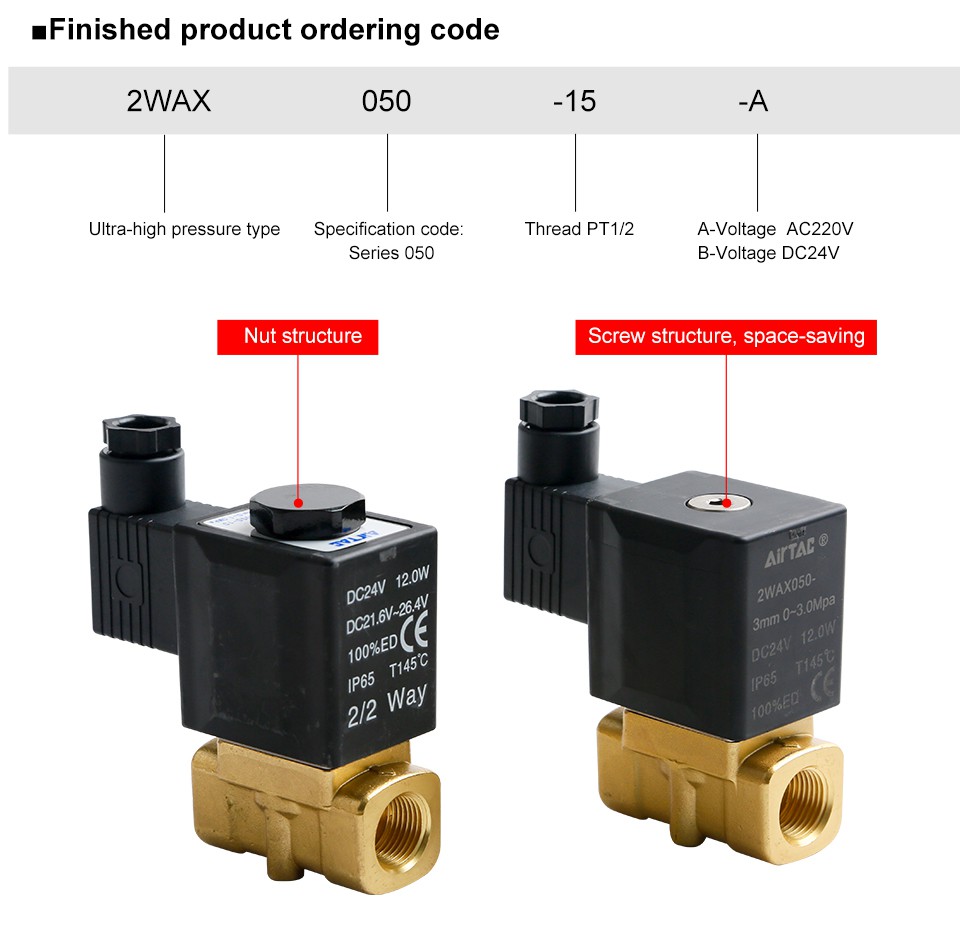

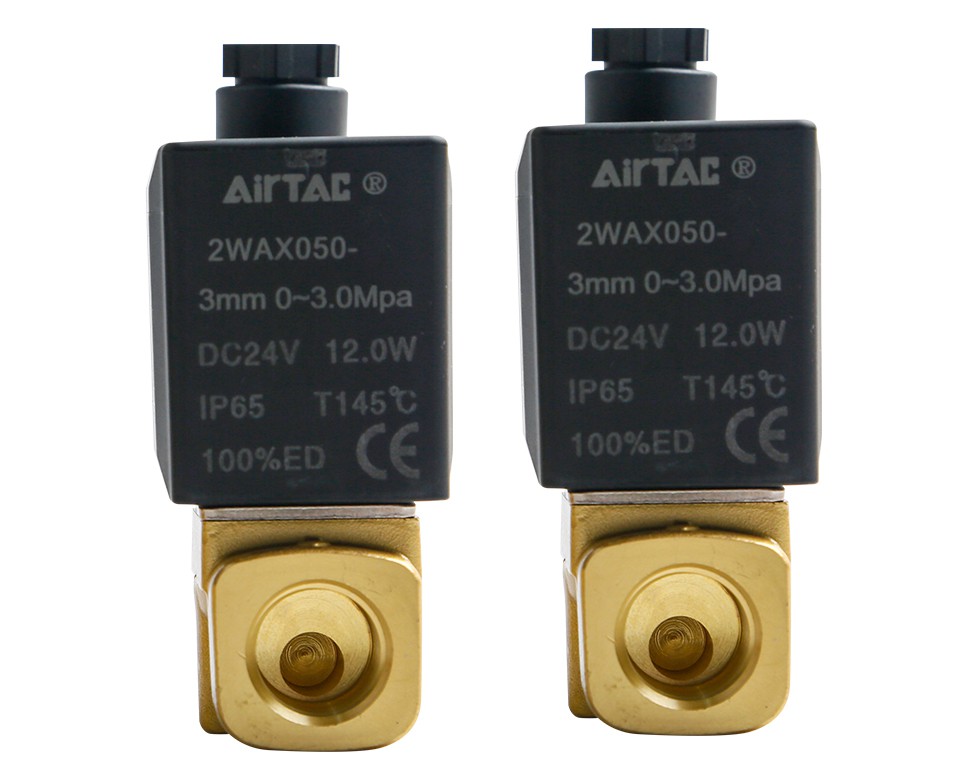

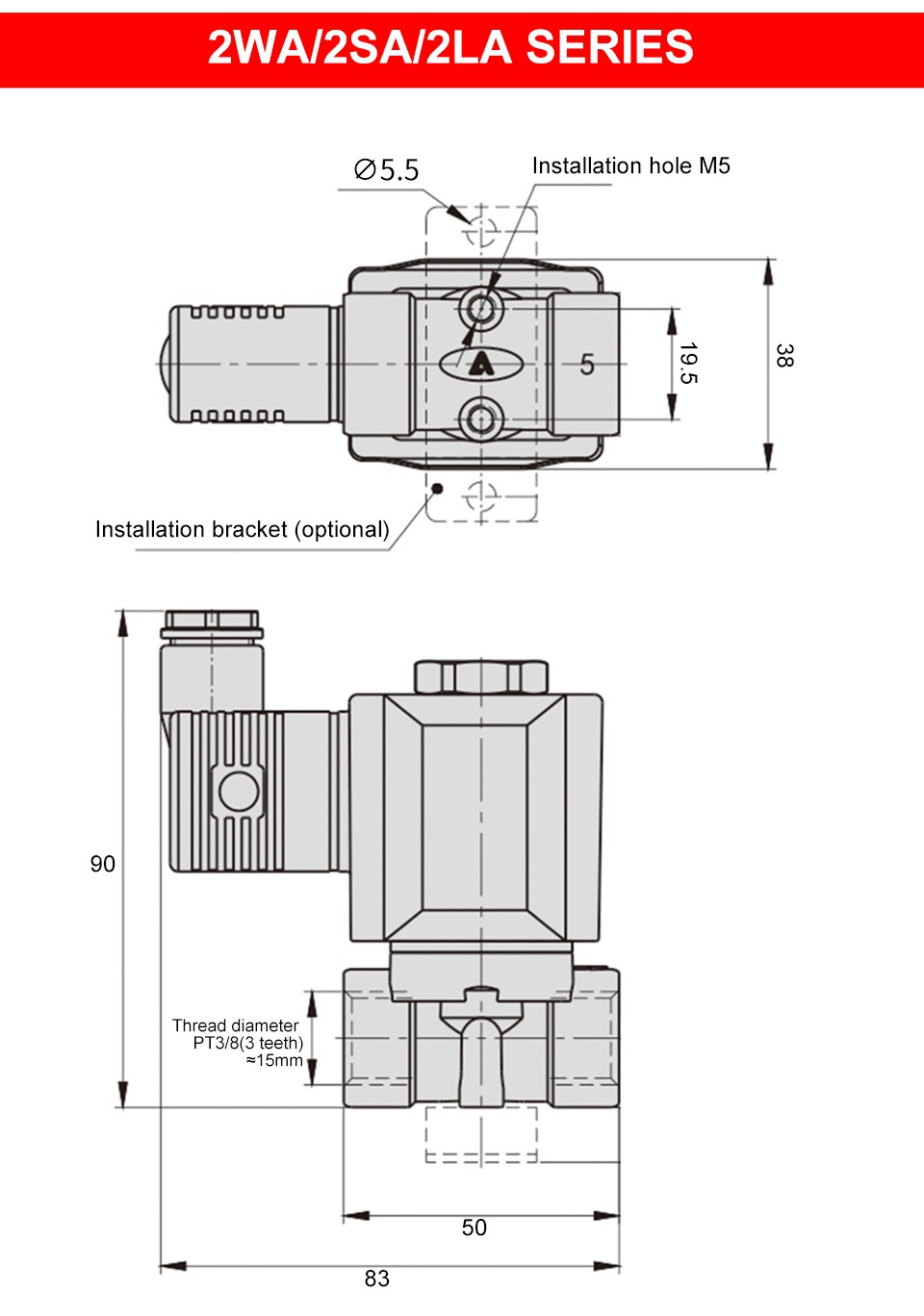

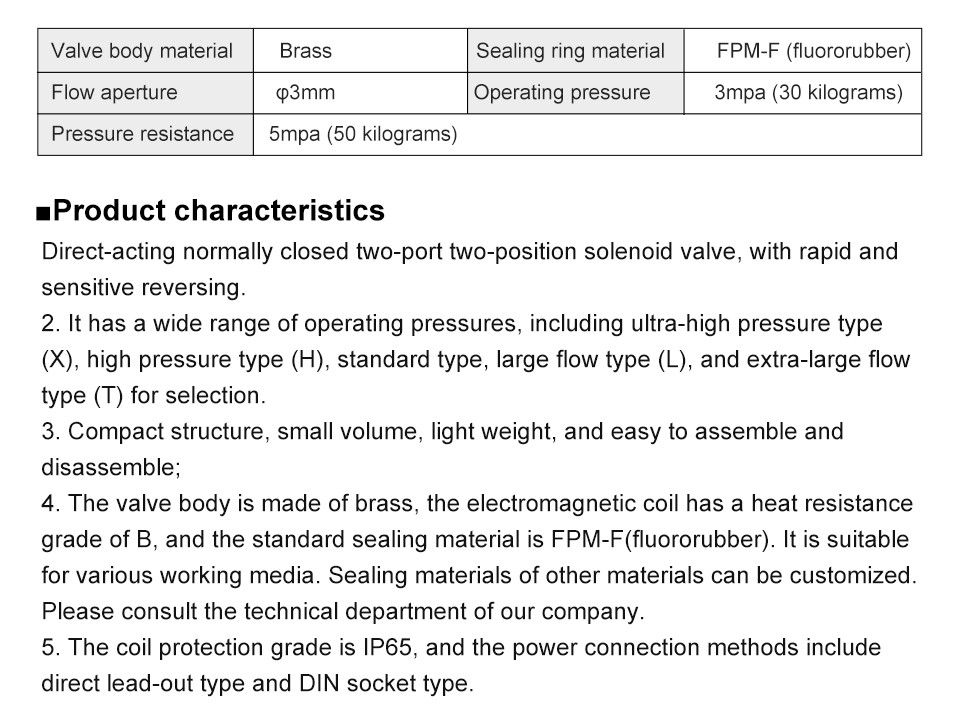

& : What is the material of the valve body of the 2W solenoid valve and what media can it carry?
A: The valve body of the 2W series is made of brass and can be used in common media such as water, air and oil.
B: If corrosive or erosive media are used, please contact customer service for confirmation.

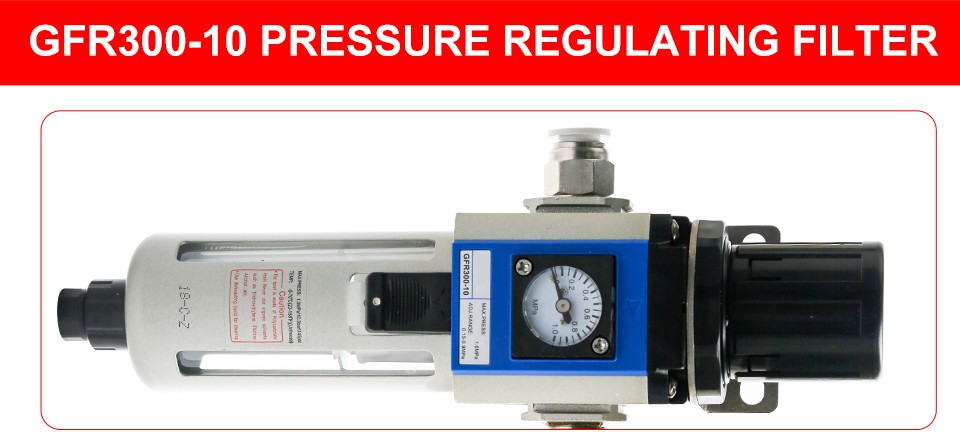

■Product characteristics

An embedded square pressure gauge is adopted to save installation space (an external circular pressure gauge can also be selected).
The press-in self-locking mechanism can prevent the set pressure from being disturbed by external factors and causing abnormal changes.
The pressure regulating mechanism adopts a balanced design, which ensures more stable pressure regulation, smaller drift and better pressure characteristics.
Besides the standard form, there is also a low-pressure type available for selection (with a maximum adjustable pressure of 0.4MPa).
The unique flow guiding structure causes the passing gas to rotate appropriately, thereby more effectively separating the liquid in the gas and reliably filtering solid particles.

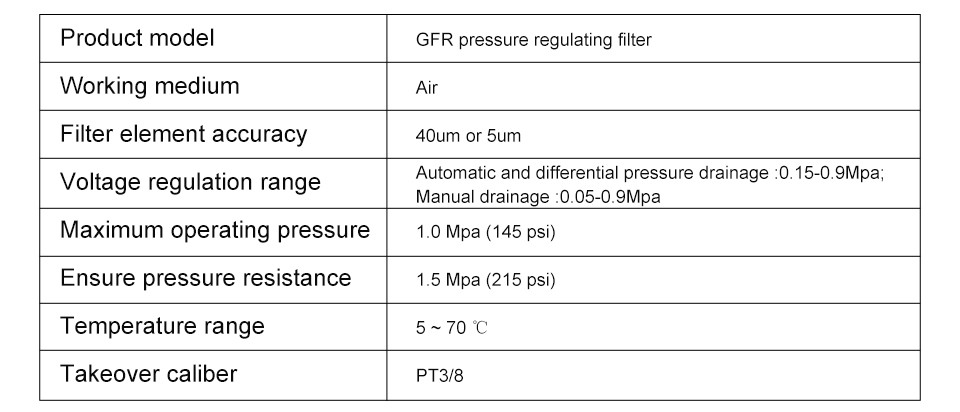

The filtration accuracy is available in 5μm and 40μm.
There are three drainage forms available for selection: manual, differential pressure and automatic drainage.

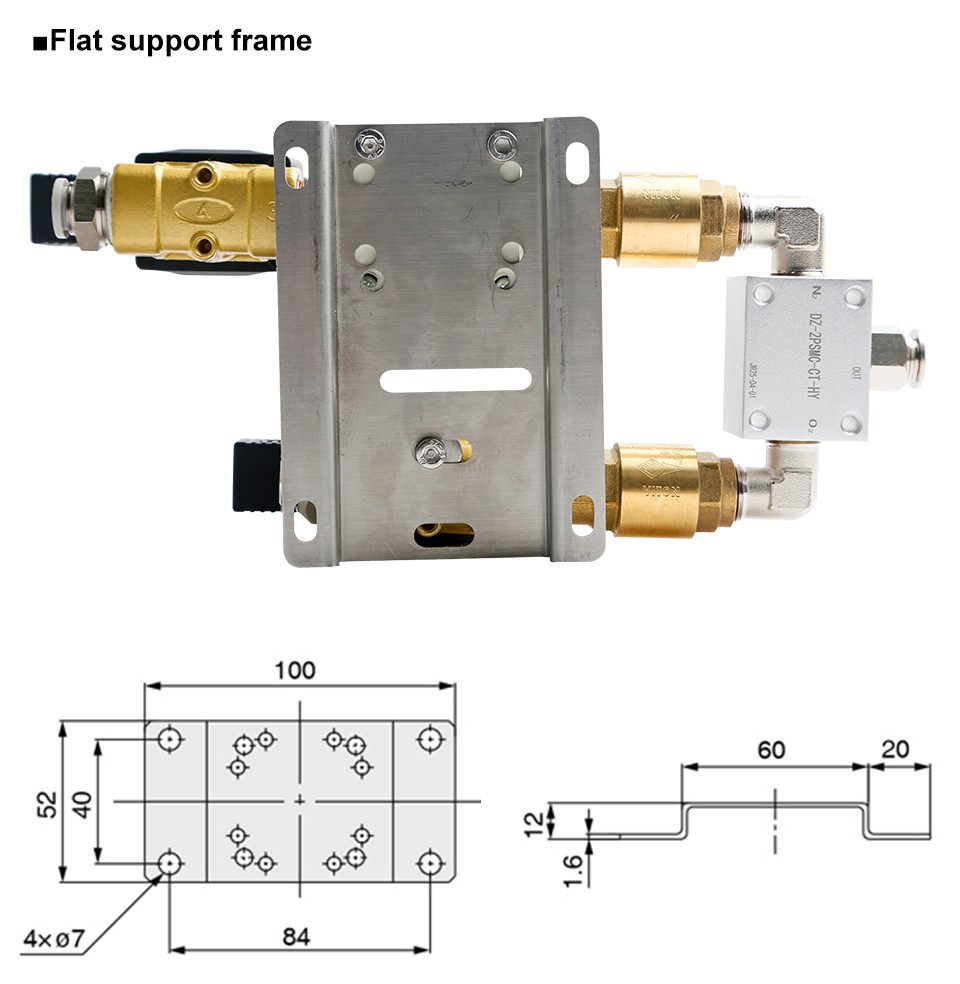

It can be installed with a fixed bracket as an option.

Other products

Two Two Way High Pressure Solenoid Valve DC24V Normally Closed Pneumatic Fluid Control Valve 2WAH05010 Brass Switch Valve

High-precision Digital Pressure Switch DPS Series Vacuum Positive and Negative Pressure Sensor Pneumatic Electronic Watch

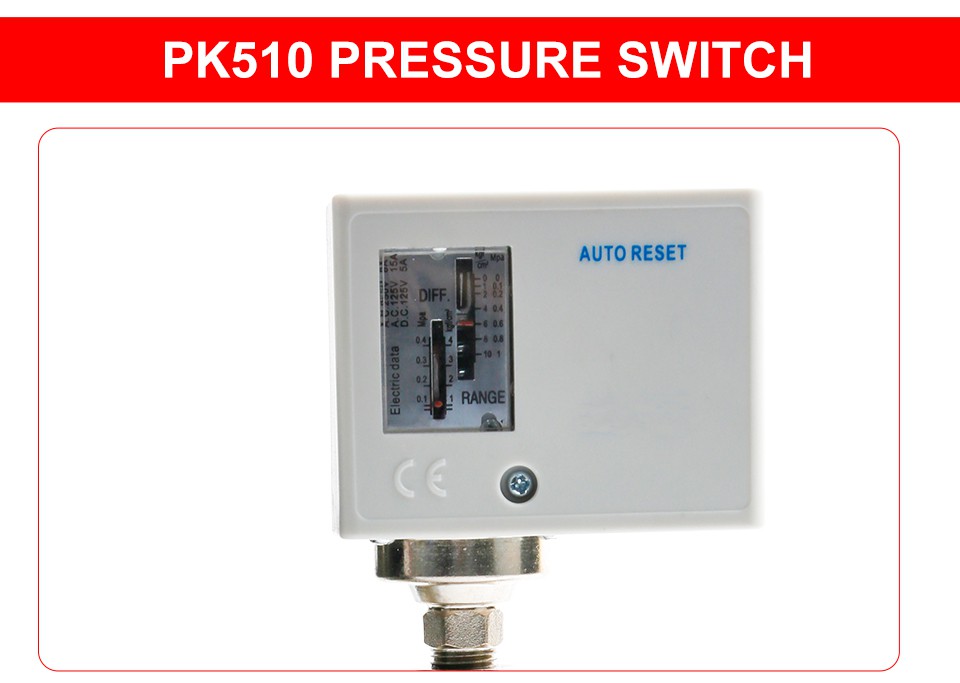

Pneumatic Pressure Switch PK503/PK506/PK510 air Compressor Mechanical air Pump Controller
