HQD Round Air-cooled Spindle Series 0.8KW-2.2KW

HQD Round Air-cooled Spindle 0.8KW/1.5KW/2.2KW Advertising Woodworking Engraving Machine Accessories

Mobile：+8615905415325

WeChat

产品描述

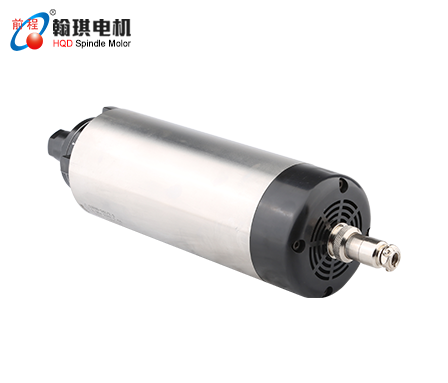

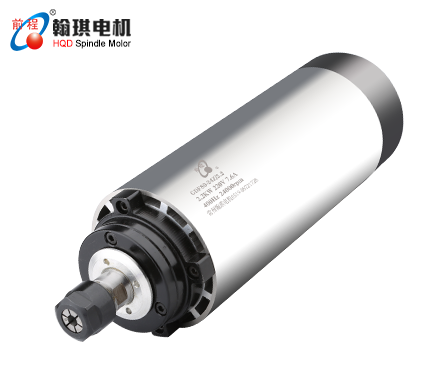

HQD Round Air-cooled Spindle Motor

Core Keywords: HQD air-cooled spindle motor, 0.8KW-2.2KW spindle motor, woodworking engraving spindle, advertising engraving machine spindle, CNC spindle motor, 24000rpm air-cooled spindle, GDF series spindle motor

This product is the HQD Round Air-cooled Spindle Motor Series independently supplied by Jinan Hongyang CNC Machinery Co., Ltd., a professional CNC accessory manufacturer with over 10 years of industry experience. Covering a power range of 0.8KW, 1.5KW and 2.2KW, the series includes classic models such as GDF65-24Z/0.8, GDF80-24Z/1.5KW, GDF80-24Z/2.2 and GDF80-24Z/2.2B ER20. It is a dedicated core power accessory for advertising engraving machines, woodworking engraving machines and small CNC processing equipment, and is widely applicable to engraving, milling and cutting processing of wood, acrylic, PVC, plastic and other light materials.

All HQD air-cooled spindle motors adopt integrated precision structural design, with a standard rated speed of 24000rpm and a matching frequency of 400HZ, which can realize high-speed and stable operation of CNC equipment. The whole series is configured with 220V rated voltage, grease lubrication system and professional wind cooling heat dissipation structure, which abandons the complex water circuit layout of water-cooled spindles, saves installation space and reduces daily maintenance costs. The spindle chucks are matched with ER11, ER16 and ER20 specifications according to different power levels, with high clamping accuracy and stable power transmission, effectively ensuring the processing precision and surface finish of workpieces. The motor shell is made of high-quality stainless steel, with high hardness, wear resistance and corrosion resistance, which can adapt to the harsh working environment of long-term continuous processing in workshops and extend the service life of the product.

Core Selling Points

Full Power Coverage, Multi-model Precision Matching

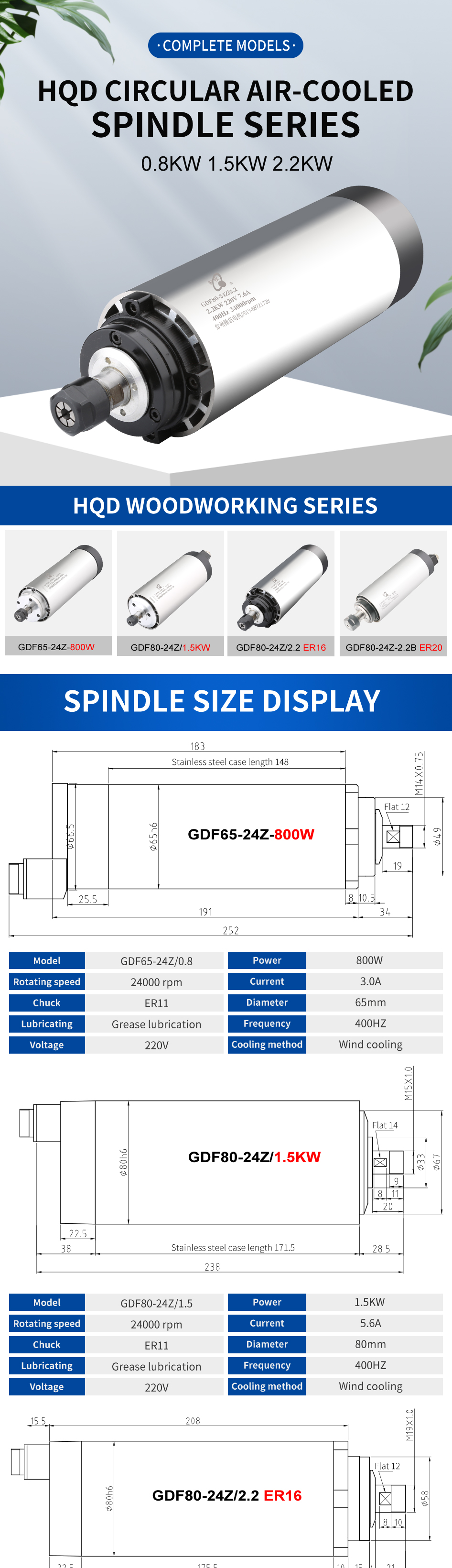

The series covers 0.8KW/1.5KW/2.2KW three mainstream power levels, with spindle diameters of 65mm and 80mm, and is equipped with ER11/ER16/ER20 chucks for free matching. It can be accurately adapted to small and medium-sized advertising, woodworking and other CNC engraving machines, meeting the processing needs of different load scenarios without additional modification.
24000rpm High-speed Operation, High Processing Efficiency
All models support a stable rated speed of 24000rpm and a 400HZ high-frequency drive, with constant torque output and no jitter or low runout during high-speed processing. The direct drive structural design eliminates traditional transmission links, realizes lossless power transmission, greatly improves the engraving and milling efficiency of light materials, and is suitable for batch processing of small parts.

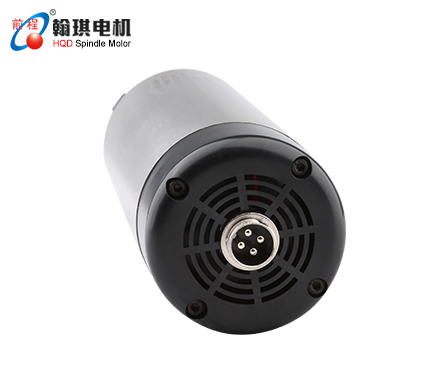

Integrated Air-cooled Heat Dissipation, Easy Installation & Maintenance
Adopting professional wind cooling heat dissipation technology, it has no need for water pump, water pipe and other water circuit accessories, which simplifies the installation process and saves the use space of the equipment. The built-in grease lubrication system has good lubrication effect and no need for frequent refueling, which reduces the daily maintenance cost and time of the spindle, and is more suitable for small and medium-sized processing workshops and individual processing users.
High-quality Material & Precision Manufacturing, Stable and Durable
The spindle shell is made of thickened stainless steel, with excellent anti-collision, wear resistance and heat resistance performance, which can effectively protect the internal components of the motor. The internal precision bearing and copper core winding are adopted to ensure low noise, low temperature rise and long-term continuous operation of the motor under full load, with a low failure rate and stable performance.
Professional CNC Accessory, Wide Application Scenarios
As a dedicated spindle motor for CNC engraving machines, it is specially optimized for the processing characteristics of wood, acrylic, advertising foam, PVC and other light materials, with high processing precision and smooth cutting surface. It is widely used in woodworking engraving, advertising sign making, acrylic cutting, plastic milling and other industries, and is the first choice for upgrading and replacing the spindle of small and medium-sized CNC engraving equipment.
Brand Strength Guarantee, Perfect Pre-sales & After-sales Service
Produced by Jinan Hongyang CNC, a well-known CNC accessory manufacturer in China, the product has independent R&D patents and has established long-term cooperation with 85% of domestic CNC machine tool manufacturers, with reliable product quality and market verification. The brand has a professional technical team of more than 20 people, providing one-stop services such as technical guidance, installation matching and after-sales maintenance. It has three large warehousing and logistics centers with more than 7,000 single products in stock, and realizes the same-day delivery of orders to ensure the rapid supply of equipment accessories.
