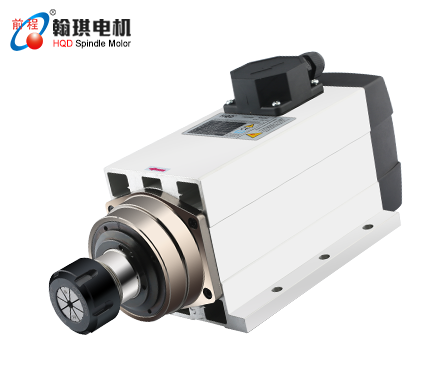

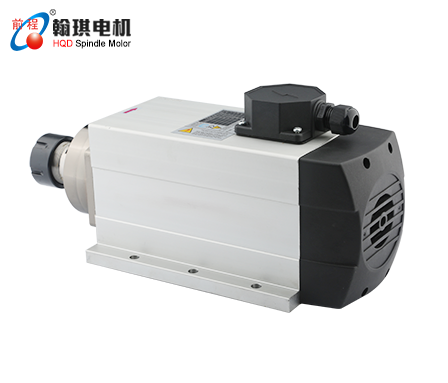

HQD Square Air-cooled Spindle Motor Series - Product Details & Selling Points

Core Selling Points

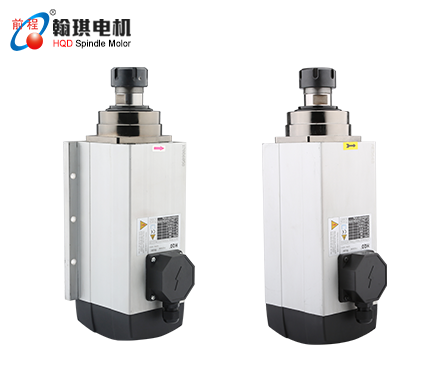

1. Full Model Range & Dual Structural Options

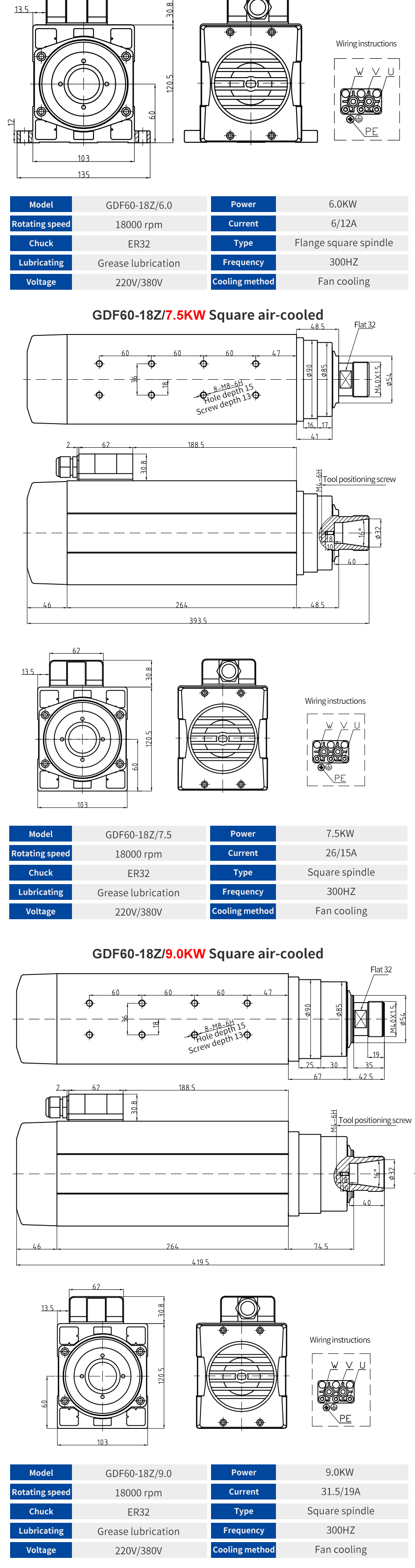

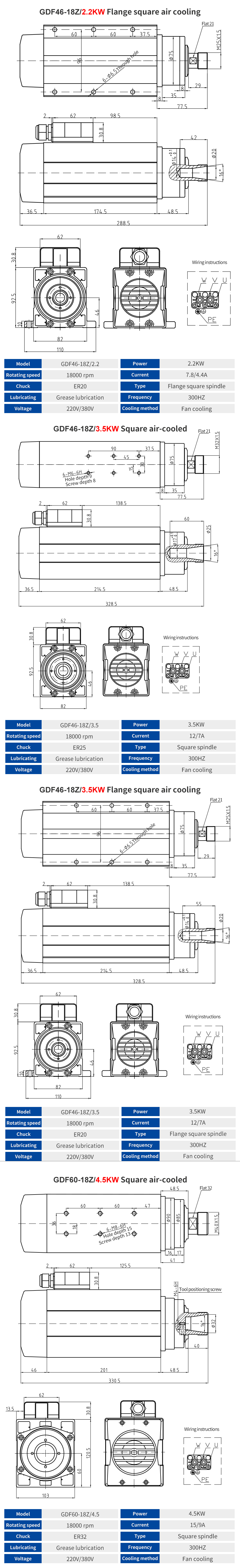

   Covering 1.5KW/2.2KW/3.5KW/4.5KW/6.0KW/7.5KW/9.0KW multiple power grades, with two main specifications of GDF46-18Z and GDF60-18Z. Each power model is available in standard square spindle and flange square air-cooled spindle versions, matching different installation and processing requirements of CNC machines. Complete model selection realizes one-stop purchasing for customers, no need for multi-supplier matching.
2. Unified High-speed Performance & Precise Processing

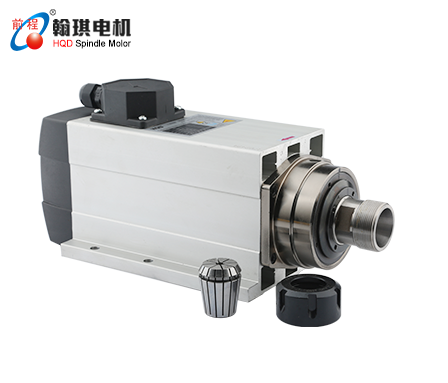

   All models support a stable rotating speed of 18000 rpm and a working frequency of 300HZ, ensuring high-speed and high-precision engraving, milling and cutting processing. Equipped with graded chucks (ER20/ER25/ER32) based on power, the spindle motor achieves precise clamping of different tools, meeting the processing precision requirements of small and medium-sized workpieces, and effectively improving the surface finish of workpieces.
3. Efficient Fan Cooling & Long-term Stable Operation

   Adopting professional fan cooling technology and grease lubrication system, the spindle motor realizes efficient heat dissipation without additional water cooling pipelines, simplifying equipment installation and daily maintenance. The integrated cooling structure effectively avoids temperature rise caused by long-time continuous operation, ensuring stable performance, low vibration and long service life, suitable for heavy-duty industrial processing scenarios.
4. Dual Voltage Adaptation & Wide Industrial Compatibility

   All spindle motors support 220V/380V dual voltage input, perfectly matching the power supply environment of different industrial sites at home and abroad, with no need for additional voltage conversion equipment. The standardized structural design with precise flat positions (21/32) and fixed thread interfaces (M25X15, M32X15, M40X15) ensures firm installation and no slipping during operation, adapting to most mainstream CNC engraving machines on the market.
5. Industrial-grade Configuration & Reliable Quality

   Adopting high-quality core components, the spindle motor features stable current output (3.0A-31.5A graded matching) and high concentricity, effectively avoiding tool wear and workpiece processing errors caused by current fluctuation and spindle shaking. The product is strictly calibrated for all parameters, with a sturdy and durable shell structure, able to withstand the harsh working environment of industrial workshops and ensure long-term reliable operation.
6. Professional Technical Support & Efficient After-sales Service

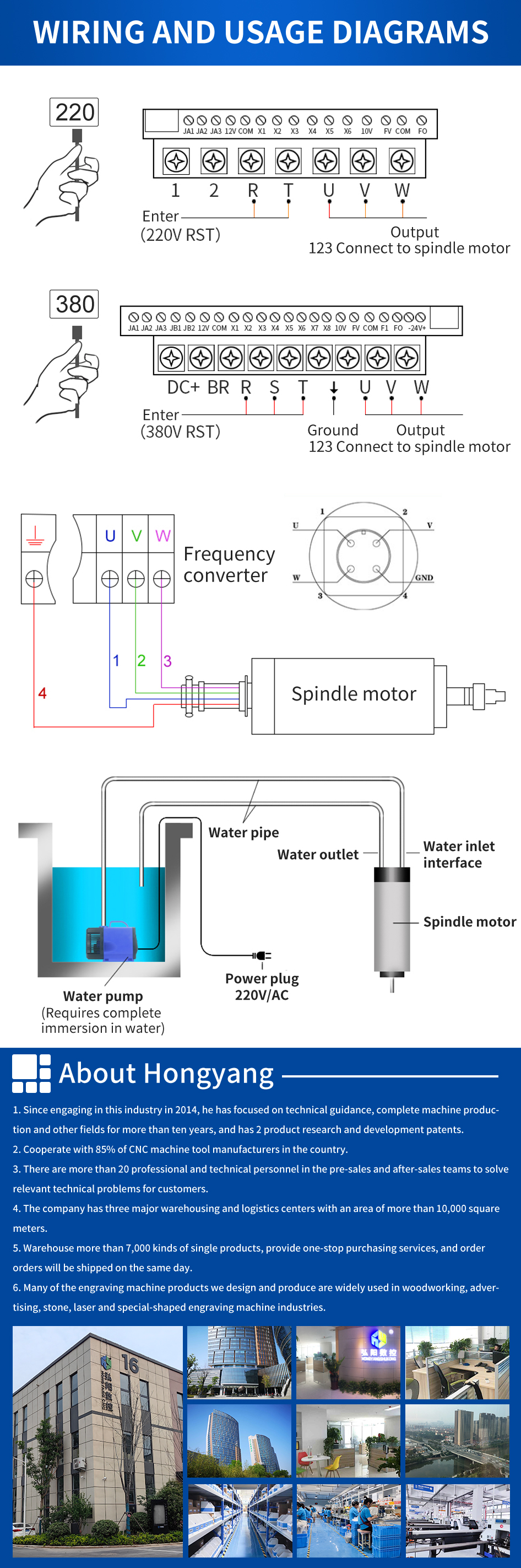

   Produced by Jinan Hongyang CNC with over 10 years of CNC industry experience, the product has independent R&D patents and cooperates with 85% of domestic CNC machine tool manufacturers. We provide detailed wiring instructions and usage diagrams for all spindle motors, with a pre-sales and after-sales team of more than 20 professional technicians to solve installation, debugging and wiring problems in a timely manner. Our three large warehousing and logistics centers stock more than 7,000 kinds of CNC accessories, supporting same-day delivery and one-stop purchasing service.

Wide Application
