HQD Water Spindle for 5-axis CNC Machining Center

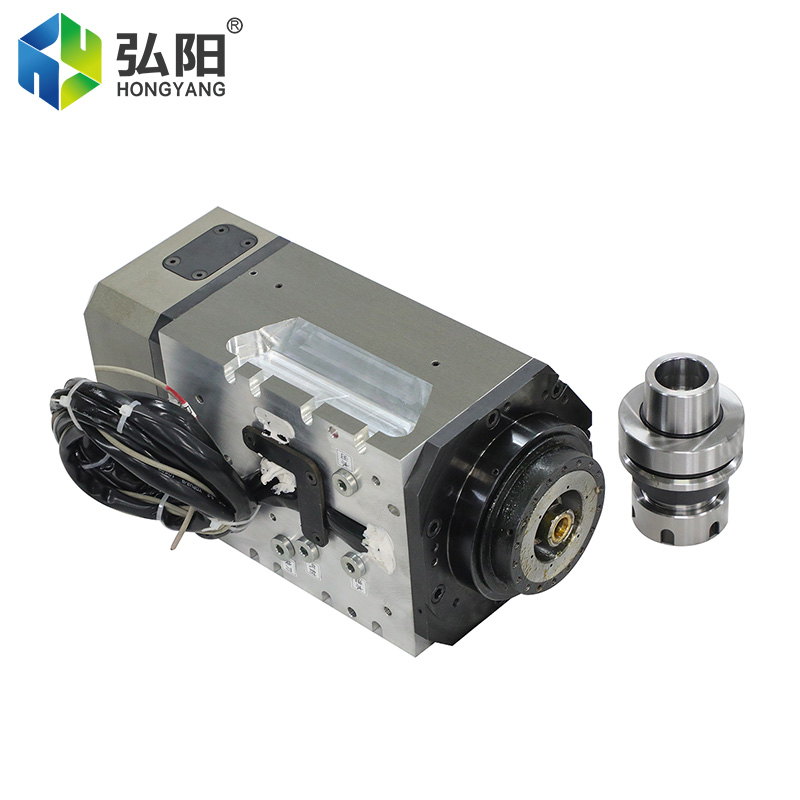

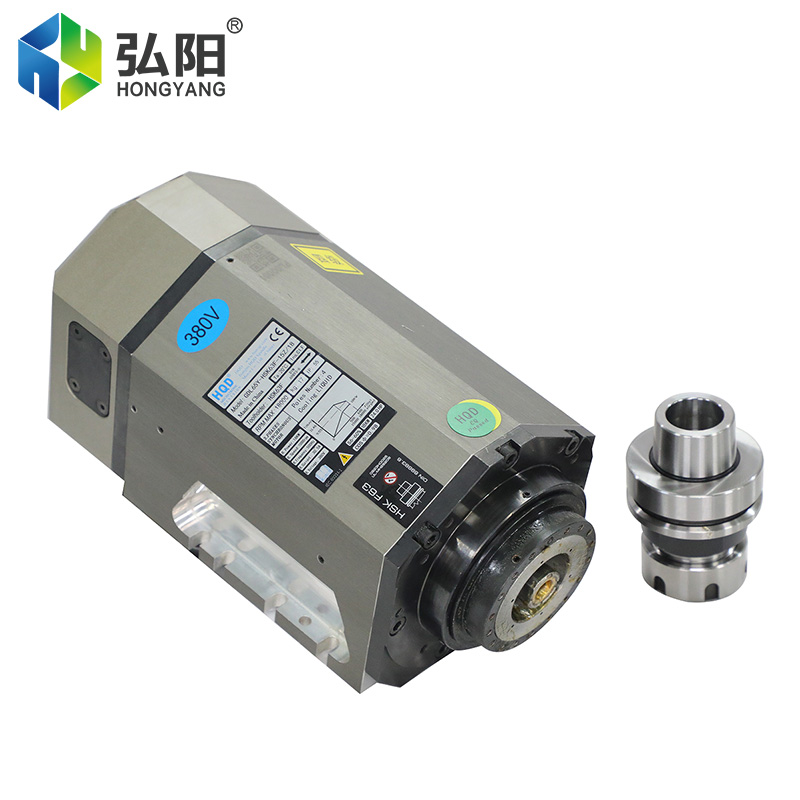

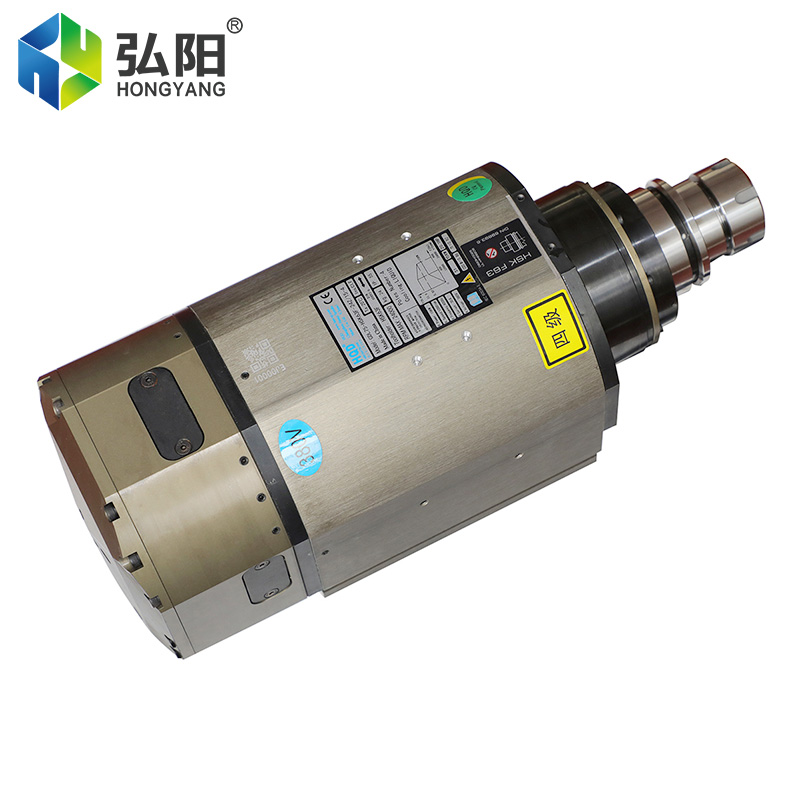

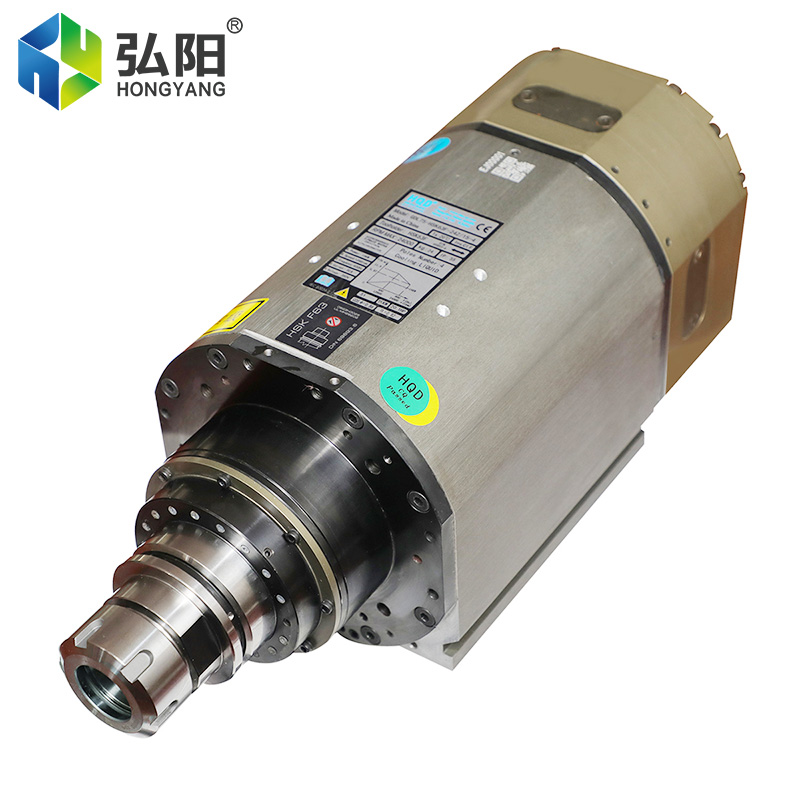

HQD Water-cooled Spindle GDL75-HSK63F-24Z/17 4P Motor Poles for 5-axis CNC Machine CenterFeatures.(1

Mobile：+8615905415325

WeChat

产品描述

HQD Water-cooled Spindle GDL75-HSK63F-24Z/17 4P Motor Poles for 5-axis CNC Machine Center

Features.(1)High-precision bearings, high precision, long life.

(2)Reasonable structure design ,simple and compact configuration ,easy to take apart.
(3)Work stable ,low noise,enough fatigue strength, Enough abrasive resistance,vibration resistance,stable size.(4)With high grade size ,shape,position precision,and quality of surface.(5)5 axis spindle technology stands for quality and efficiency,and is well-suited

P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power Careful assembly makes the spindle more precise.The accuracy is 0.01 mm, and the coaxial cable is less than 0.0025 mm

1.Our main shaft uses 4 bearings.
2.Bearings are resistant to high temperature and low heat

Ceramic ball bearings have low friction, low noise and long service life

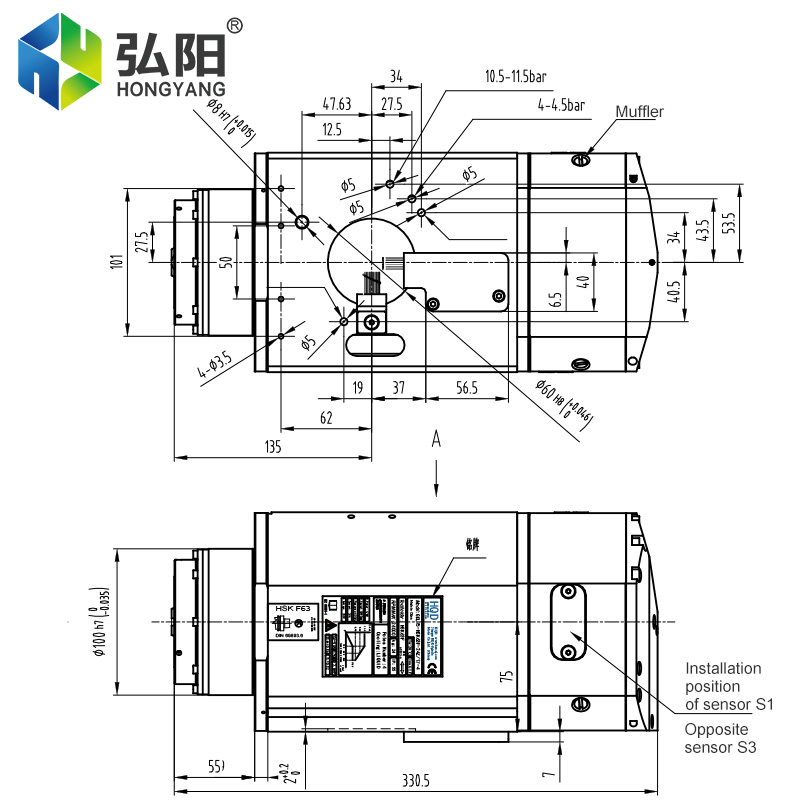

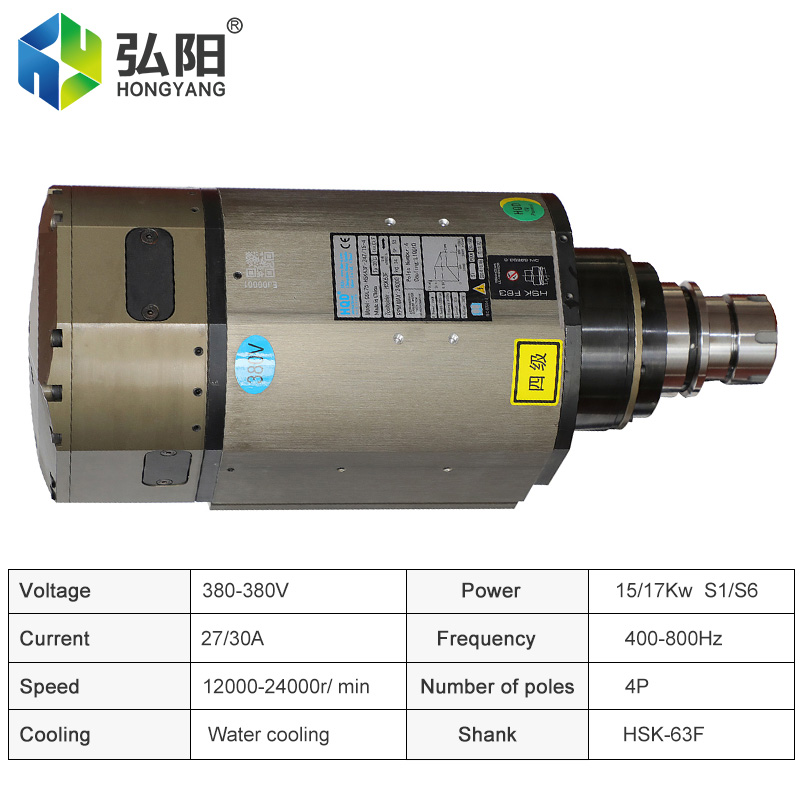

Rated Power
15/17Kw S1/S6
Rated Voltage
380 - 380V
Rated Speed
12000 - 24000r/min
Rated Frequency
400 - 800Hz
Rated Current
27/30A
Number of Motor Poles
4P
Rotation Direction
Counterclockwise when viewed from the shaft extension end
Cooling Method
Water - cooled
Tool Shank
HSK - 63F
Weight
Approximately 24kg

You can choose model
Wing head model
Spindle model

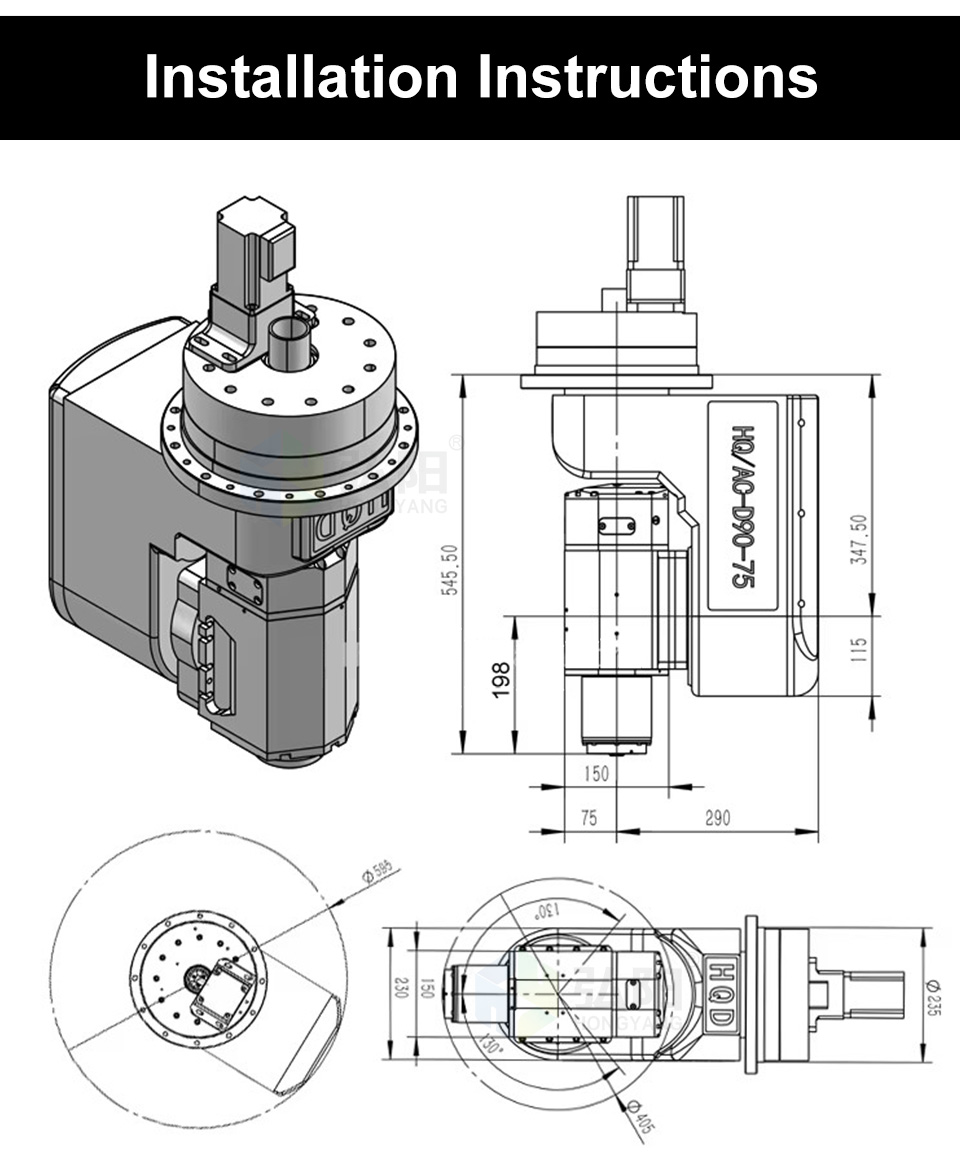

HQ/AC-D90-75
GDL75-HSK63F-24Z/17(Long-nose style、Encoder)
GDL75-HSK63A-18Z/20
GDL75-HSK63F-24Z/17
GDL65-HSK63F-24Z/12-4
GDL65Y-HSK63F-15Z/18
GDL65-IS030-18Z/9-4
HQ/AC-D90-65
GDL65-HSK63F-24Z/12-4
GDL65Y-HSK63F-15Z/18
GDL65-IS030-18Z/9-4

Power cord
The three-color wires are the power cables for phases U, V, and W of the motor.
The yellow-green color represents the protective grounding cable for the GND motor.
Temperature control switch
The brown thin line is the cable for stator overheating protection.
The brown thin line is the cable for stator overheating protection.
Note
The temperature control switch is used for stator overheating protection. The switch should be connected in series with the
machine's safety stop system. It is usually in the closed state. When the stator temperature exceeds 100°C, the switch opens, and
when the temperature is below 100°C, it reverts to the closed state. The switch capacity is 250V, 5A.
